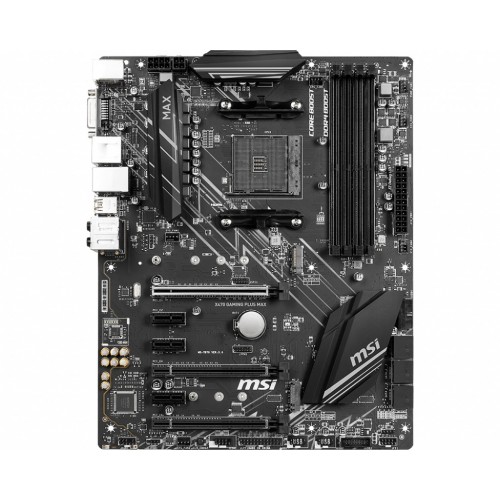

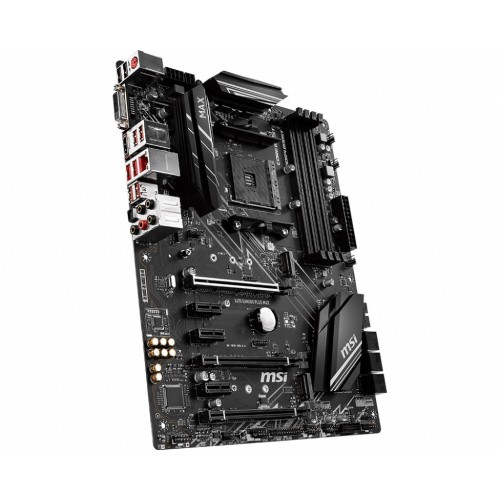

MSI X470 Gaming Plus Max RGB AMD Motherboard

Computer Components > Motherboard > MSI (AMD)

MSI X470 Gaming Plus Max RGB AMD Motherboard

Model: MSI X470 Gaming Plus Max
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Lightning Fast Game experience
Supports DDR4, up to 4133(OC) MHz
Core Boost, DDR4 Boost, Audio Boost

Available EMI Offer

TK 11500

~~TK 12910~~

Brand:

msi

Product Details

Basic Information
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD X470 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI	2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode) 3 x PCIe 2.0 x1 slots
M.2 Socket	2 x M.2 slot (Key M) M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Memory
Type	Dual channel memory architecture Supports non-ECC UDIMM memoryy Supports ECC UDIMM memory
Slots	4 x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9) Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE For AMD Other CPU Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE
Maximum Memory	supports up to 64GB
Graphics
Graphics	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz1 Only support when using Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors 1st, 2nd and 3rd Gen AMD Ryzen Processors Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors
Max Shared Memory	Maximum shared memory of 2048 MB
Connector & Ports
HDMI	1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
DVI-D (s)	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s)	ASMedia ASM1143 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel AMD X470 Chipset 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD CPU 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)	1 x Realtek 8111H Gigabit LAN controller
Supported Storage	AMD X470 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)1 M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

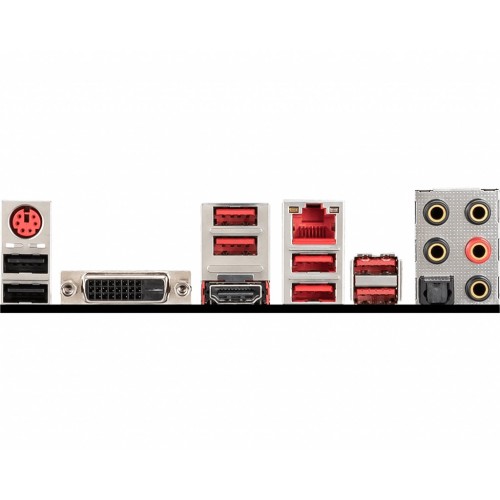

Internal I/O Ports	PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Ports DVI-D Port HDMI Port USB 3.2 Gen1 USB 3.2 Gen2 Optical S/PDIF OUT 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (support additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin PUMP fan connector (supports up to 2A) 4 x 4-pin system fan connectors 1 x Serial port connector 1 x Parallel port connector 2 x 5050 RGB LED strip 12V connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Clear CMOS button
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
