Product Details
Basic Information | ||
Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
Chipset | AMD X570 Chipset |
|
Form Factor | ATX Form Factor | |
Audio | 7.1-Channel High Definition Audio | |
Expansion Slots | ||
PCI | - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) - 3x PCIe 3.0 x1 slots1 - PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. |
|
M.2 Socket | - Lightning Gen4 x4 M.2 with M.2 Shield Frozr, - 2 Slot 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices |
|
Memory | ||
Type | DDR4 | |
Slots | - MEMORY CHANNEL: Dual - DIMM SLOTS: 4 - 4x DDR4 memory slots, support up to 128GB |
|
Supported Memory | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE | |
Maximum Memory | Maximum shared memory of 2048 MB | |
Graphics | ||
Graphics | - 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1 - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors |
|
Max Shared Memory | Maximum shared memory of 2048 MB | |
Connector & Ports | ||
HDMI | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz | |

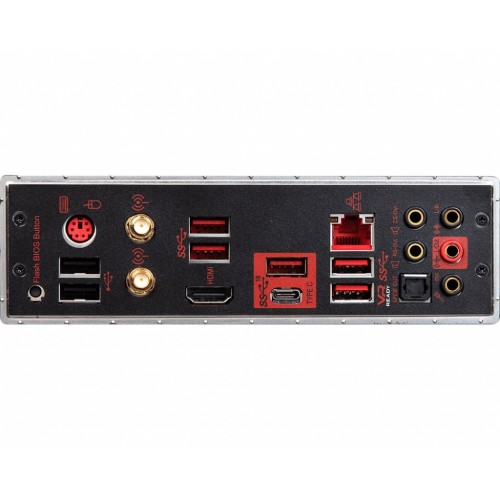

USB (s) | AMD X570 Chipset: - 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel - 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector - 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor: - 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel - 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
LAN Port (s) | 1x Realtek 8111H Gigabit LAN Controller | |
Supported Storage | AMD X570 Chipset: - 4x SATA 6Gb/s ports(SATA3-SATA6) - 2x M.2 slots (Key M) M2_1 slot (from AMD Processor): - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD X570 Chipset): - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061: - 2x SATA 6Gb/s ports (SATA1, SATA2) |
|
Audio | 7.1-Channel High Definition Audio | |
Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LEDs |
|
TPM (Trusted Platform Module ) | 1x TPM module connector | |
Warranty Information | ||
Manufacturing Warranty | 03 years warranty | |
Others | ||
Bundled Software | Support for Windows 10 64-bit |
