Product Details
Basic Information | ||
Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
Chipset | AMD X570 | |
BIOS | 1 x 256MB flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language |
|
Form Factor | ATX | |
Expansion Slots | ||
PCI | PCI Express 4.0 x16 : - 1 x PCIe 4.0/3.0 x16 slot (PCIE_1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode -1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode) PCI Express x1 : - 3 x PCIe 3.0 x1 slots* |
|
M.2 Socket | 2 x M.2 slot (Key M): M2_1 slot (from AMD Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices |
|
Memory | ||
Type | DDR4 | |
Slots | 4 | |
Supported Memory | 3rd Gen AMD Ryzen Processors support DDR4 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC |
|
Maximum Memory | 128GB | |
Graphics | ||
Graphics | Supported only by CPU with integrated graphic: - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@24Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors |
|
Max Shared Memory | Maximum shared memory of 2048MB | |
Connector & Ports | ||
HDMI | Yes (1.4 ) | |

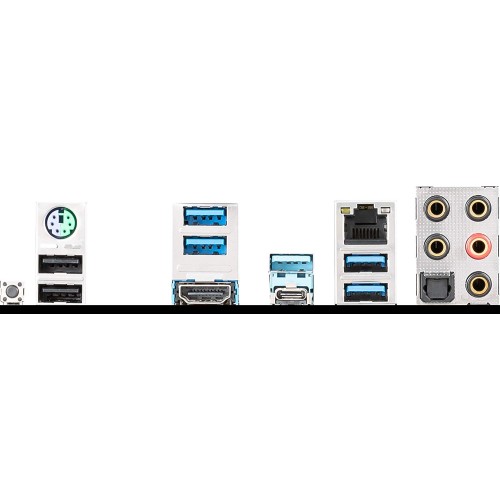

USB (s) | AMD X570 Chipset : - 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor : - 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
LAN Port (s) | 1 x Realtek 8111H Gigabit LAN Controller | |
Supported Storage | 6 x SATA 6Gb/s 2 x M.2 slot (Key M): M2_1 slot (from AMD Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices |
|
Audio | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
|
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs |
|
TPM (Trusted Platform Module ) | 1 x TPM module connector | |
Warranty Information | ||
Manufacturing Warranty | 03 year warranty |
