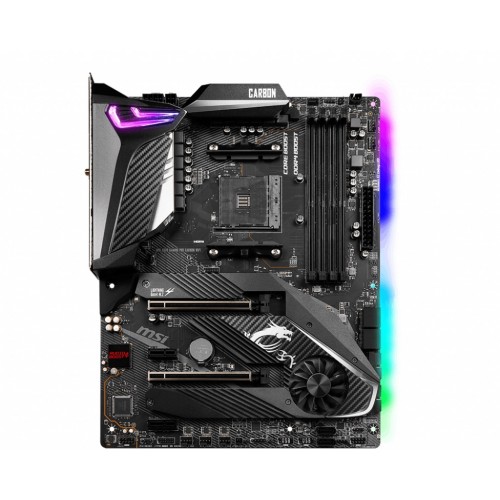

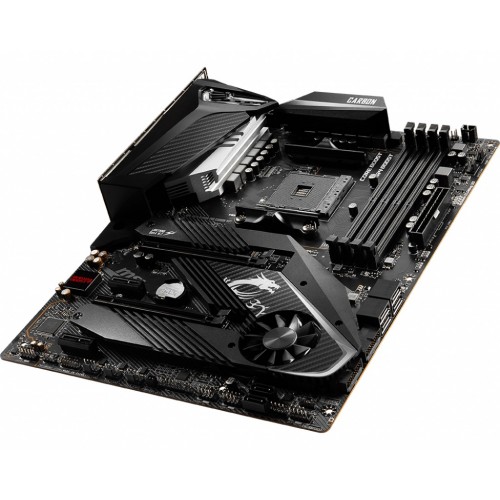

MSI MPG X570 Gaming Pro Carbon WiFi AMD Motherboard

Model: MSI MPG X570 Gaming Pro AMD WiFi
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Lightning Fast Game experience
MYSTIC LIGHT: 16.8 million colors / 29 effects
AUDIO BOOST 4 with NAHIMIC 3

TK 24500

~~TK 28510~~

Brand:

msi

Product Details

Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset	AMD X570 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
Expansion Slots
PCI	1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen support PCIe 3.0x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode 2x PCIe 3.0 x1 slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
Memory
Type	DDR4
Slots	Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Supported Memory	3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
Maximum Memory	support up to 128GB
Graphics
Graphics	1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz Supports 2-Way AMD CrossFire Technology
Connector & Ports
HDMI	1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
USB (s)	AMD X570 Chipset 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell 4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)	1x Intel I211AT Gigabit LAN controller
Supported Storage	AMD X570 Chipset 4x SATA 6Gb/s ports(SATA1-SATA4) 2x M.2 slots (Key M)1 M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA5, SATA6) The speeds may vary for different devices
Audio	Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output

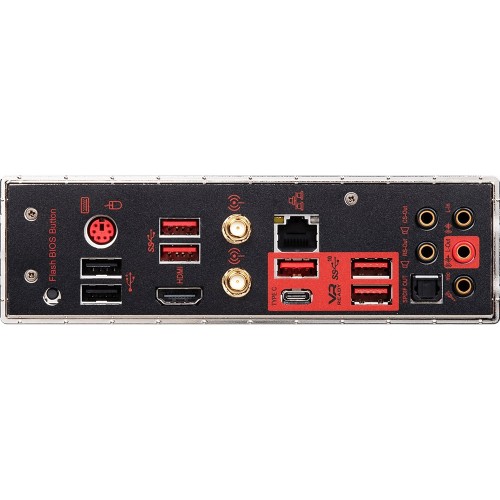

Internal I/O Ports	Keyboard / Mouse USB 3.2 Gen1 Type-A Wireless / Bluetooth LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen2 Type-A + C USB 3.2 Gen2 Type-A Optical S/PDIF out 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Clear CMOS jumper 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x 2-pin LED Demo Connect 4x EZ Debug LEDs
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
