MSI MEG B550 UNIFY AM4 ATX AMD Motherboard

Computer Components > Motherboard > MSI (AMD)

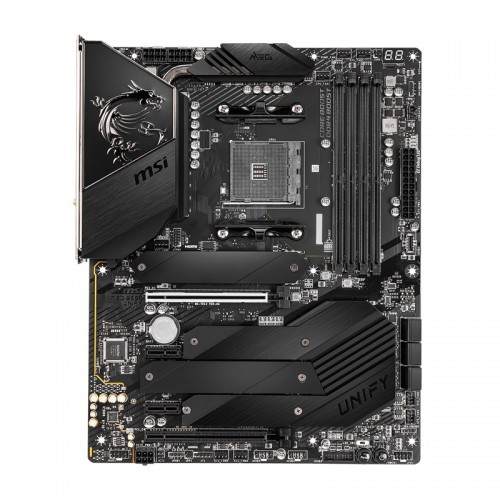

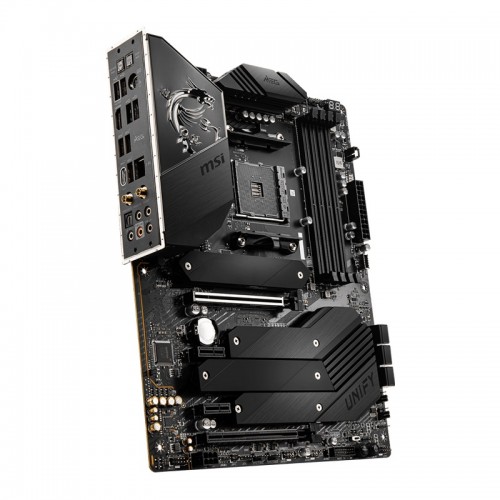

MSI MEG B550 UNIFY AM4 ATX AMD Motherboard

Model: MSI MEG B550 UNIFY
Supports AMD Ryzen 5000 & 3000 Series desktop processors
Extreme Power Design
Quadruple M.2 Connectors
Premium Thermal Solution

Available EMI Offer

TK 28400

~~TK 30710~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
Expansion Slots
PCI	AMD Processor 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) AMD B550 Chipset 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 speed 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3)
M.2 Socket	4x M.2 slots (Key M)
Memory
Type	Dual channel memory architecture
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC AMD Ryzen 4000 G-Series processors support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ (Max. 5600) MHz by A-XMP OC MODE 3rd Gen AMD Ryzen processors supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE AMD Ryzen 4000 G-Series processors 1DPC 1R max speed 5100 MHz (QVL), Max. 5600 MHz 1DPC 2R max speed 4266 MHz 2DPC 1R max speed 4400 MHz 2DPC 2R max speed 3600 MHz 3rd Gen AMD Ryzen processors 1DPC 1R max speed 5100 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz Supports 2-Way AMD CrossFire Technology
Max Shared Memory	16GB
Connector & Ports
HDMI	1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz

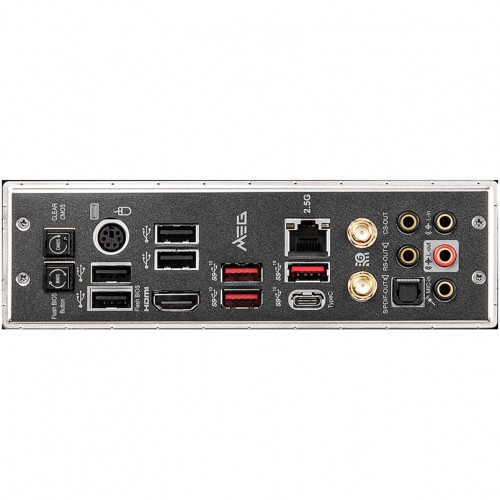

USB (s)	AMD Processor 4x USB 3.2 Gen 2 10Gbps ports(3 Type-A ports and 1 Type-C port) on the back panel AMD B550 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 4x USB 2.0 ports on the back channel AMD B550 chipset + USB 2.0 Hubs 4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports 4x M.2 slots (Key M) M2_1 slot (from CPU)\ Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2280/ 22110 storage devices M2_2 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 Supports 2280 storage devices M2_3 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2280/ 22110 storage devices M2_4 slot Supports PCIe 3.0 x4 Supports 2280 storage devices
Audio	Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x Clear CMOS jumper 1x Power button 1x Reset button
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6 AX200 The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1
