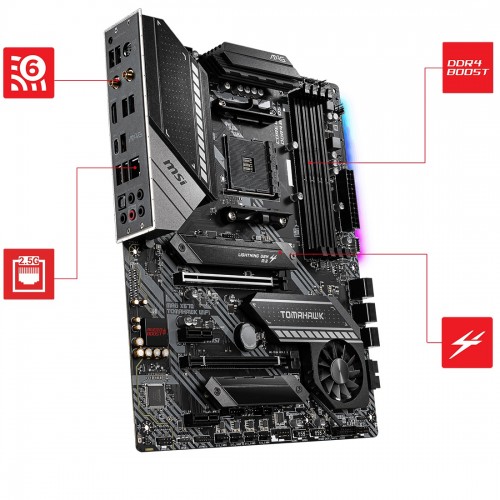

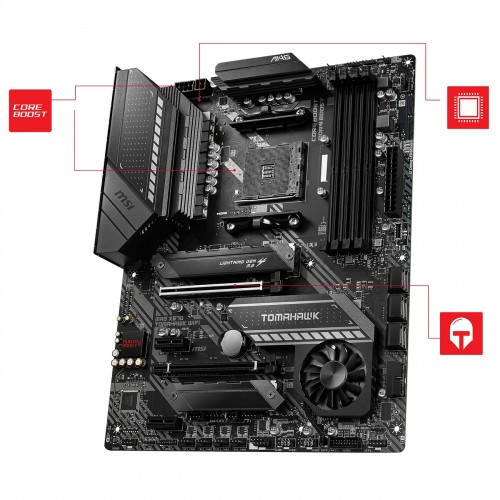

MSI MAG X570 TOMAHAWK WiFi AMD Motherboard

Model: MSI MAG X570 TOMAHAWK WiFi
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
DDR4 Memory (Up to 4600 MHz)
Lightning Gen4 & M.2 Shield Frozr
2.5G Gaming LAN along Latest Wi-Fi 6

TK 24900

~~TK 26950~~

Brand:

msi

Product Details

Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset	AMD X570 Chipset
BIOS	1 x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SM BIOS 2.8 Multi-language
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output
Expansion Slots
PCI	1 x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen support PCIe 3.0x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x 8 mode 1 x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode 2 x PCIe 3.0 x1 slots
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 memory slots
Supported Memory	3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	support up to 128GB
Graphics
Graphics	Supports 2-Way AMD CrossFire Technology
Max Shared Memory	Maximum shared memory of 2048 MB
Connector & Ports
HDMI	1 x HDMI
USB (s)	3 x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4 x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
LAN Port (s)	1 x Realtek 8125B 2.5Gbps LAN Controller
Supported Storage	6 x SATA 6Gb/s ports (from AMD® X570 Chipset) 2 x M.2 slots (Key M) 1 M2-1 slot (from AMD Processor) Supports PCIe 4.0 x 4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x 4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1 x USB 3.2 Gen 2 10Gbps Type-C Port 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
Others
Special Features	Intel Wi-Fi 6 AX200- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5.1 The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
