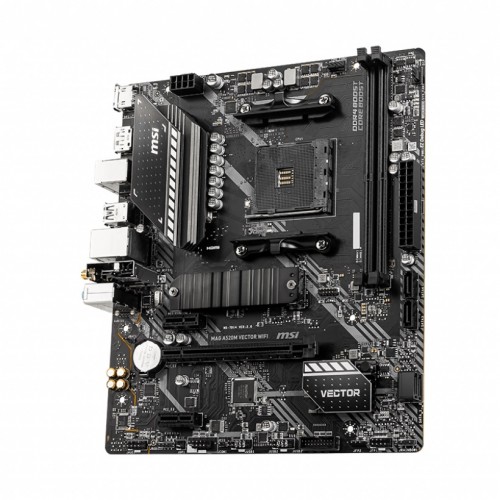

MSI MAG A520M Vector Wi-Fi AM4 AMD Micro-ATX Motherboard

Computer Components > Motherboard > MSI (AMD)

MSI MAG A520M Vector Wi-Fi AM4 AMD Micro-ATX Motherboard

Model: MSI MAG A520M Vector Wi-Fi
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Turbo M.2 & M.2 Shield Frozr
2oz Thickened Copper PCB
Extended Heatsink Design

Available EMI Offer

TK 8700

~~TK 9300~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B520
Form Factor	M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Expansion Slots
PCI	1x PCIe x16 slot (PCI_E2) 2x PCIe 3.0 x1 slots
M.2 Socket	1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Memory
Type	Dual-channel memory architecture
Slots	2x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	64GB
Graphics
Graphics	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory	2048 MB

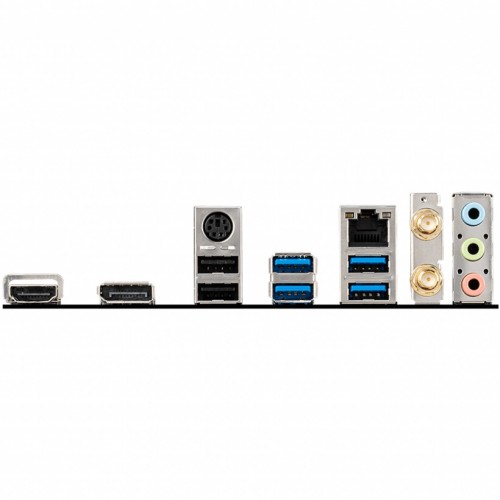

Connector & Ports
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)	1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H LAN controller
Supported Storage	AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
