MSI B450M PRO-VDH MAX AMD AM4 Gaming Motherboard

Computer Components > Motherboard > MSI (AMD)

MSI B450M PRO-VDH MAX AMD AM4 Gaming Motherboard

Model: MSI B450M PRO-VDH MAX
Supports 1st, 2nd and 3rd Gen AMD Ryzen
Memory up to 3466+(OC) MHz
PCI-E Gen3 x4 maximizes performance
PCI-E Steel Armor

Available EMI Offer

TK 8500

~~TK 9010~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD B450 Chipset
Form Factor	9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) m-ATX Form Factor
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 2 x PCIe 2.0 x1 slots
M.2 Socket	1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Memory
Type	Dual Channel Architecture
Slots	4 x DDR4 memory slots
Supported Memory	Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE) For AMD Other Processors Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Supports Dual Channel mode Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory
Maximum Memory	64GB
Graphics
Graphics	1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Max Shared Memory	Maximum shared memory of 2048 MB
Connector & Ports

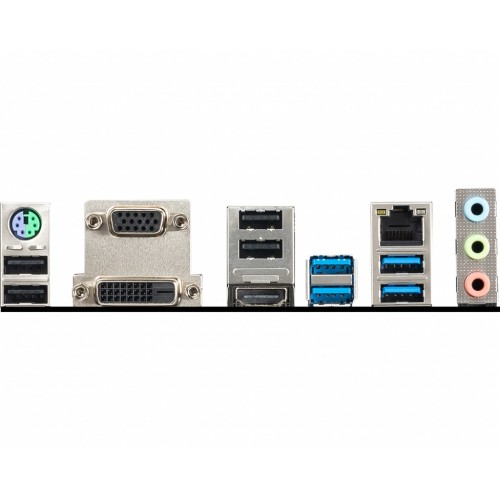

HDMI	1 x HDMI 1.4 port (resolution of 4096x2160 @30Hz, 2560x1600 @60Hz)
DVI-D (s)	Yes1 x DVI-D port (resolution of 1920x1200@60Hz)
USB (s)	AMD B450 Chipset 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors) AMD processor 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)	1 x Realtek 8111H Gigabit LAN controller
Supported Storage	AMD B450 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x RGB LED strip connector 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
