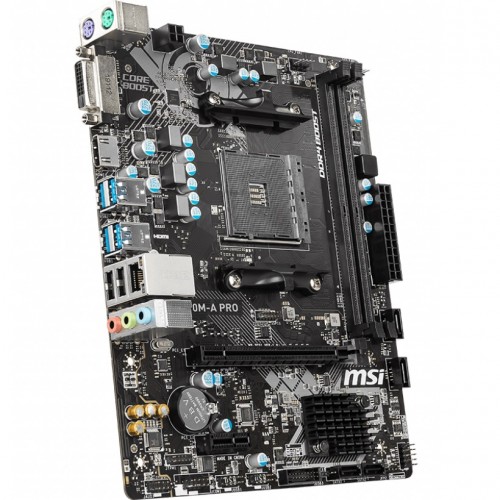

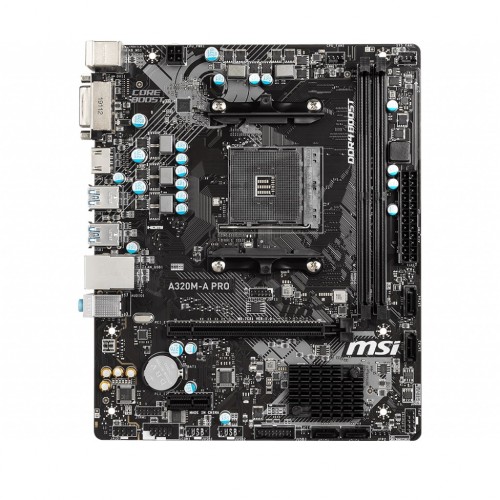

MSI A320M-A Pro AMD Micro-ATX Motherboard

Computer Components > Motherboard > MSI (AMD)

MSI A320M-A Pro AMD Micro-ATX Motherboard

Model: MSI A320M-A Pro
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ with Radeon Vega Graphics
Supports up to 3200 (OC) MHz DDR4 RAM
Core Boost: support more cores
DDR4 Boost, Audio Boost

Available EMI Offer

TK 5700

~~TK 6080~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset	AMD A320 Chipset
Form Factor	8.9 in. x 7.4 in. (22.6 cm x 18.7 cm) m-ATX Form Factor
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot Supports x16 speed with 1st, 2nd, and 3rd Gen AMD Ryzen processors Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 2.0 x1 slots
Memory
Type	Dual channel memory architecture
Slots	2 x DDR4 memory slots
Supported Memory	upport 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
Maximum Memory	64GB
Graphics
Graphics	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
Max Shared Memory	GraphicssMaximum shared memory of 2048 MB

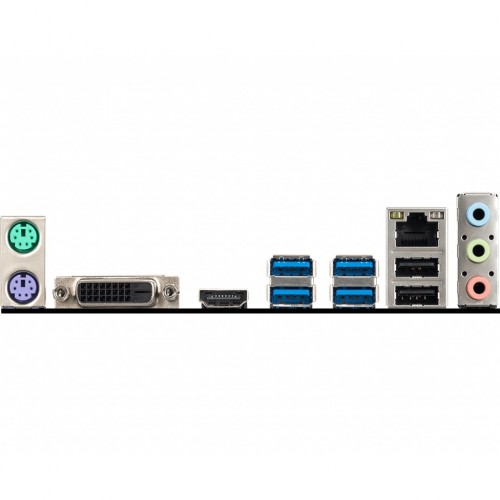

Connector & Ports
HDMI	1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
DVI-D (s)	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s)	AMD A320 Chipset 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal connectors
LAN Port (s)	1 x Realtek 8111H Gigabit LAN controller
Supported Storage	AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 and RAID 10
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
