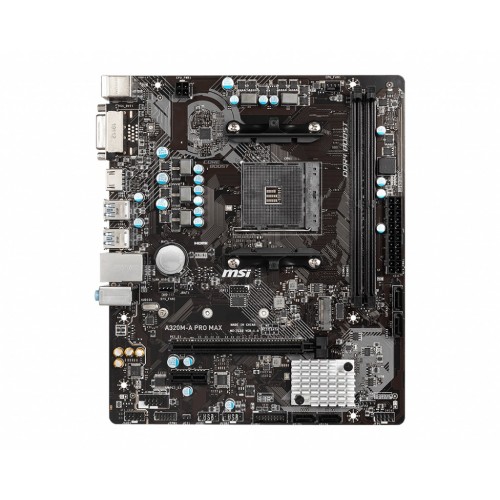

MSI A320M-A Pro Max AMD Motherboard

Computer Components > Motherboard > MSI (AMD)

MSI A320M-A Pro Max AMD Motherboard

Model: MSI A320M-A Pro Max
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ with Radeon Vega Graphics
Audio: studio grade sound quality
Core Boost: support more cores
Turbo M.2: Running at PCI-E Gen3 x4

Available EMI Offer

TK 5700

~~TK 6080~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset	AMD A320 Chipset
Form Factor	m-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen Supports x8 speed Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics A-series Athlon X4 Supports x4 speed AMD Athlon with Radeon Vega Graphics PCIe 2.0 x1 slot
M.2 Socket	1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics
Memory
Type	Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory
Slots	2
Supported Memory	Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
Maximum Memory	32GB
Graphics
Graphics	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 Only support when using the processor with
Max Shared Memory	GraphicssMaximum shared memory of 2048 MB

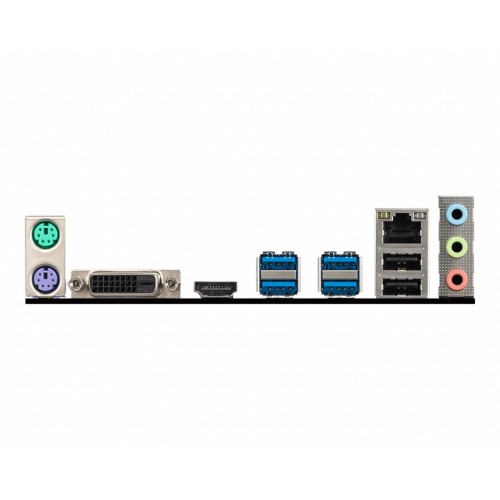

Connector & Ports
HDMI	1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
DVI-D (s)	Yes1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s)	AMD A320 Chipset 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
LAN Port (s)	1 x Realtek 8111H Gigabit LAN controller
Supported Storage	AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics Supports PCIe 3.0 x2 and SATA 6Gb/s AMD Athlon with Radeon™ Vega Graphics A-series Athlon X4 Supports 2242/ 2260/ 2280/ 22110 storage devices
Audio	7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
