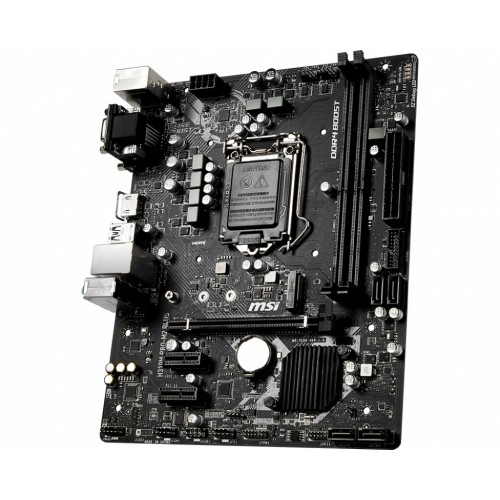

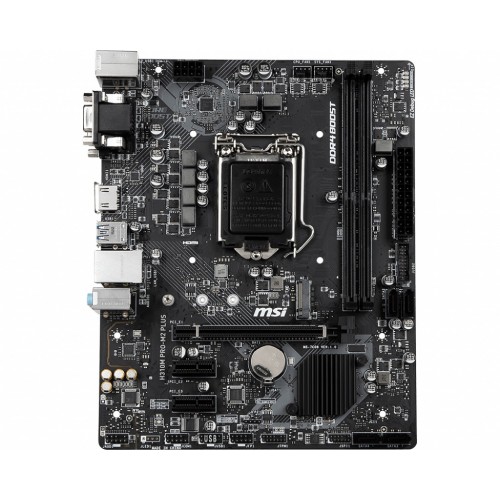

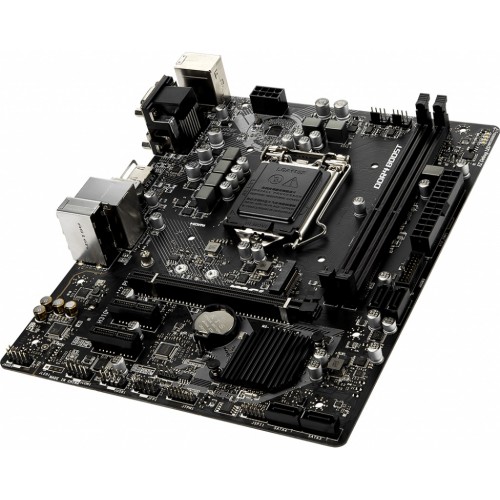

MSI 9th Gen H310M Pro-M2 Plus Intel Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI 9th Gen H310M Pro-M2 Plus Intel Motherboard

Model: MSI H310M Pro-M2 Plus
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151
Audio Boost: studio grade sound
EZ Debug LED: For troubleshoot
PCI-E Steel Slot: Protecting VGA cards

TK 6700

~~TK 7160~~

Brand:

msi

Product Details

Specification:

Basic Information
Supported CPU	Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset	Intel H310 Chipset
Form Factor	m-ATX Form Factor 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
M.2 Socket	1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Memory
Type	Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Slots	2 x DDR4 memory slots
Supported Memory	Supports DDR4 2666/ 2400/ 2133 MHz
Maximum Mamory	32GB
Graphics
Graphics	1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

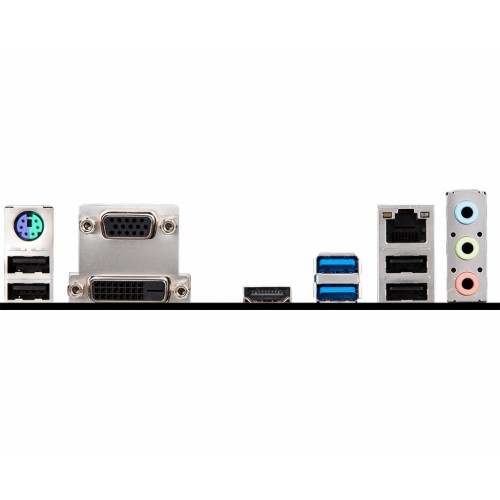

Connector & Ports
HDMI	1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
USB (s)	Intel H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
LAN Port (s)	1 x Intel I219-V Gigabit LAN controller
Supported Storage	Intel H310 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Audio	Realtek ALC887 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
DVI-D (s)	1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Warranty Information
Manufacturing Warranty	03 years
