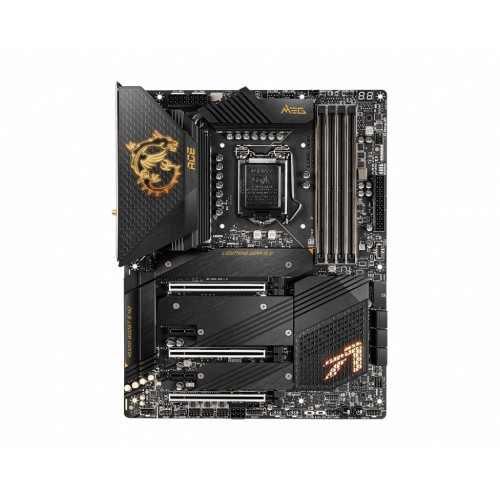

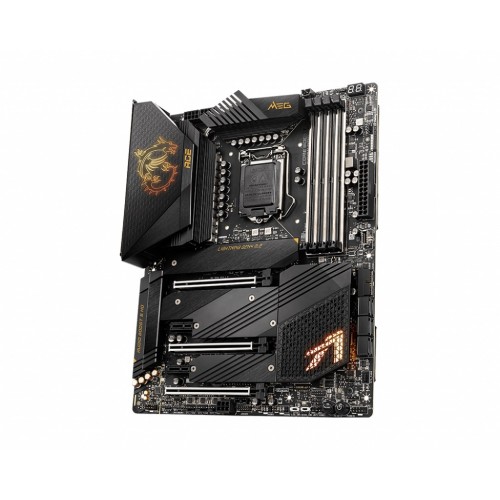

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard

Model: MEG Z590 ACE Gaming
Supports 11th and 10th Gen Intel Core / Pentium Celeron processors
Supports DDR4 Memory, up to 5600(OC) MHz
Quadruple M.2, LGA 1200 socket
2.5G LAN with latest Wi-Fi 6E

Available EMI Offer

TK 56000

~~TK 57500~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron® Processors1 Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E5 slot (From Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 chipset)
M.2 Socket	4x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	support up to 128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1
Connector & Ports

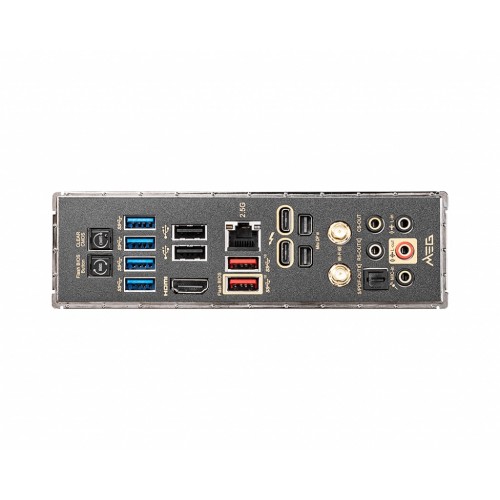

USB (s)	3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) 2x USB 2.0 Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB connectors
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_2, M2_3, M2_4 slots (from Z590 chipset)
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
