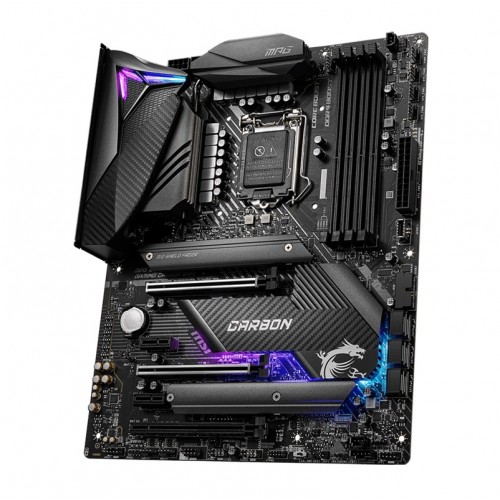

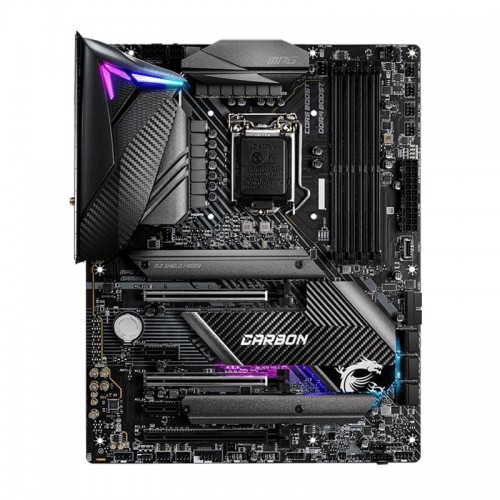

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard

Model: MSI Z490 Gaming Carbon Wi-Fi
Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5000(OC) MHz
Lightning USB 20G Powered by ASmedia 3241
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution

TK 24500

~~TK 25500~~

Brand:

msi

Product Details

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
Chipset	Intel Z490 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI	3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode 2x PCIe 3.0 x1 slots
M.2 Socket	2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Memory
Type	Dual-Channel mode
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4500+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	support up to 128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz MULTI-GPU Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology
Max Shared Memory	1GB

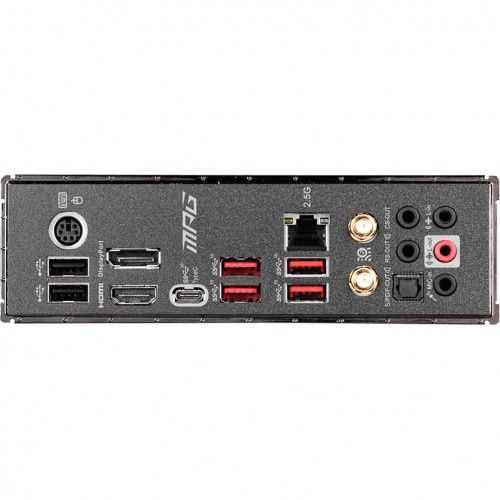

Connector & Ports
HDMI	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
Display Port (s)	1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
USB (s)	Intel Z490 Chipset 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia ASM3241 Chipset 1x USB 3.2 Gen 2x2 20Gbps port on the back panel
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage	Intel Z490 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Sma
Audio	Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x Serial port connector 1x RTD3 connector 1x Clear CMOS jumper 1x TBT connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
