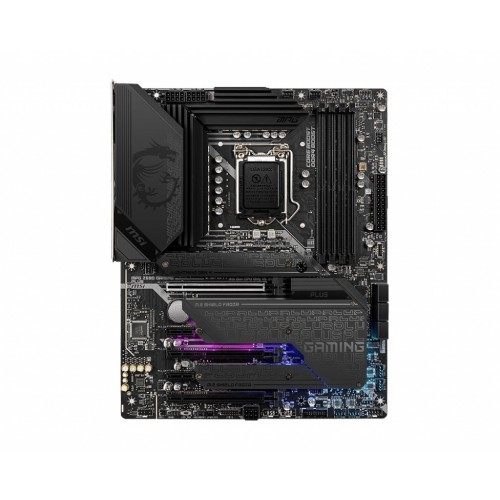

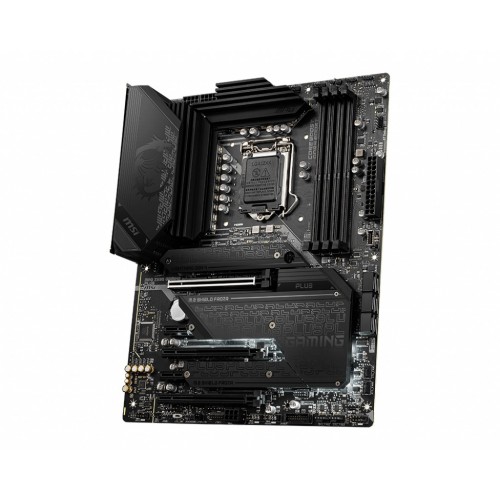

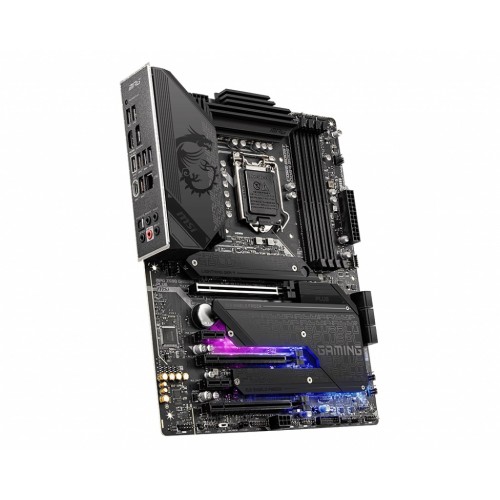

MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard

Model: MPG Z590 Gaming Plus
Supports 11th and 10th Gen Intel Core / Pentium Celeron processor
DDR4 Memory, up to 5333(OC) MHz
LGA 1200 socket
2.5G LAN with LAN Manage

Available EMI Offer

TK 29800

~~TK 32120~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors 1 Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCIe x16 slots 2x PCIe 3.0 x1 slots (From Z590 chipset)
M.2 Socket	3x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4x DDR4 memory slots,
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	support up to 128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports

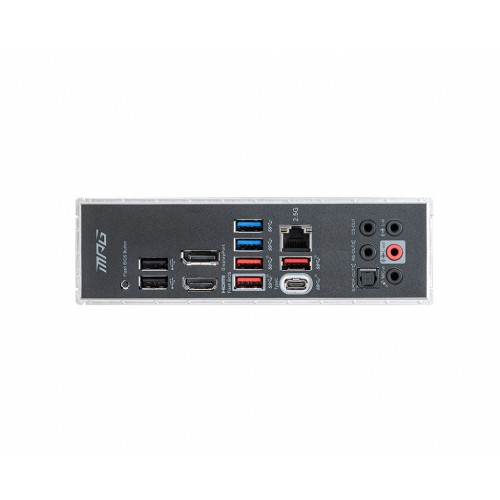

USB (s)	1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel) Hub-GL850G 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)
LAN Port (s)	1x Intel I225-V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M_3 slots (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready3 Supports Inte Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3)
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
