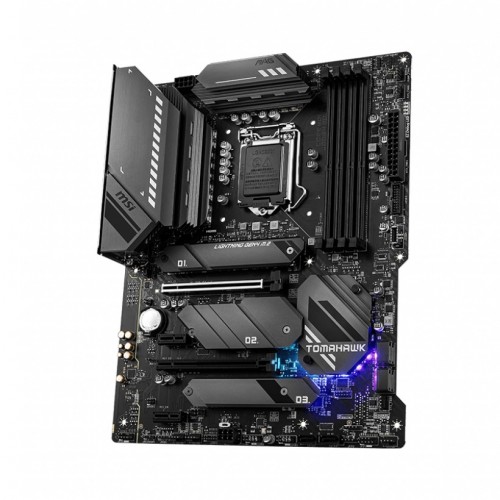

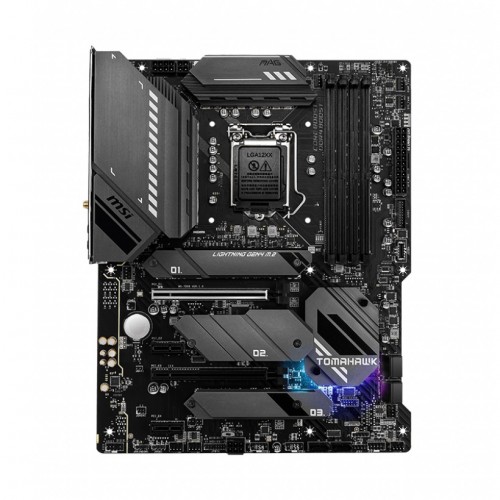

MSI MAG Z590 Tomahawk Wi-Fi Intel 11th Gen ATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI MAG Z590 Tomahawk Wi-Fi Intel 11th Gen ATX Motherboard

Model: MSI MAG Z590 Tomahawk Wi-Fi
Supports 10th Gen Intel 11th Gen Intel Processors
2.5G LAN and Intel Wi-Fi 6E Solution
Premium Thermal Solution
Lightning USB 20G

TK 25500

~~TK 27000~~

Brand:

msi

Product Details

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI	2x PCIe x16 slots 1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (From Z590 chipset) Support up to PCIe 3.0 x4 2x PCIe 3.0 x1 slots (From Z590 chipset)
M.2 Socket	3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Memory
Type	DDR4
Slots	4x memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology

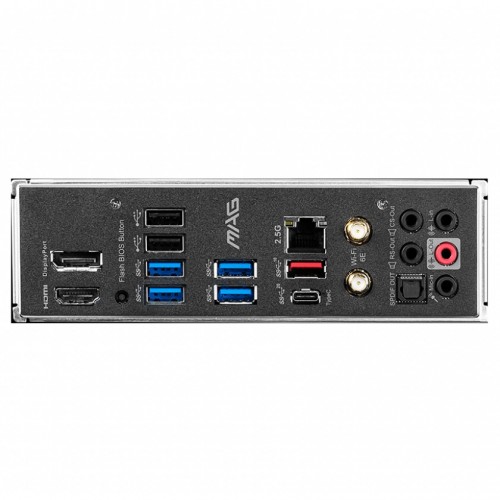

Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)	1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
USB (s)	Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
LAN Port (s)	1x Intel I225-V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (From Z590 chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 Years
