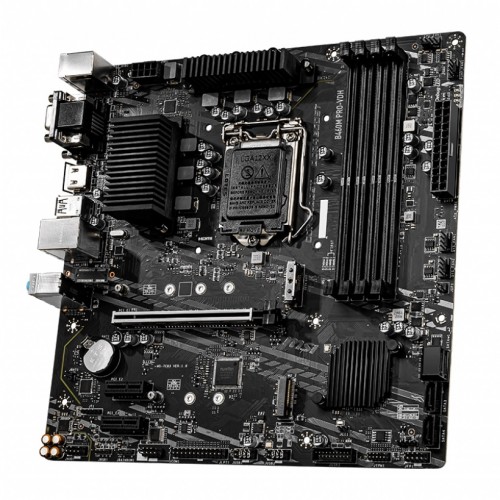

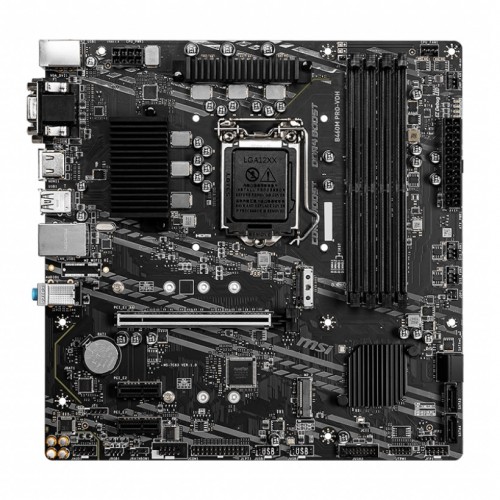

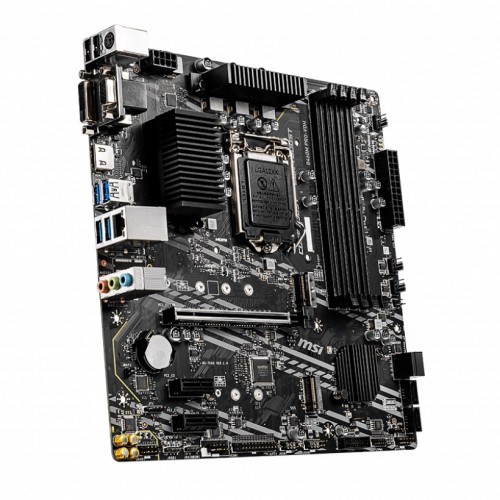

MSI B460M PRO-VDH 10th Gen Micro ATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI B460M PRO-VDH 10th Gen Micro ATX Motherboard

Model: B460M PRO-VDH
Supports 10th Gen Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933MHz
Twin Turbo M.2
Audio Boost & Steel Armor

TK 9000

~~TK 9980~~

Brand:

msi

Product Details

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket.
Chipset	Intel B460 Chipset
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH)
M.2 Socket	2x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Intel Core i7/ i9 Support DDR4-2933 Memory (Max.) Intel Core i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz

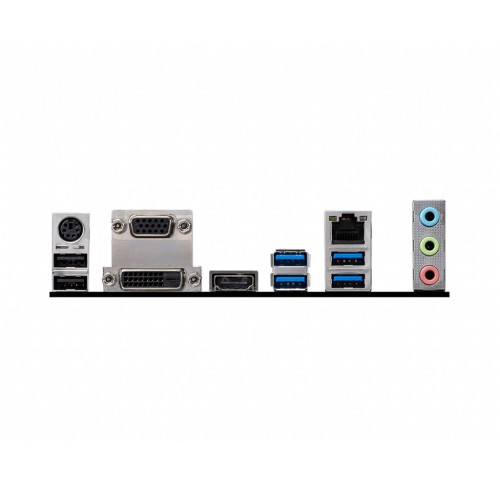

Connector & Ports
HDMI	1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
VGA (s)	1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
DVI-D (s)	1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
USB (s)	Intel B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s)	1x Realtek RTL8111H Gigabit LAN Controller
Supported Storage	Intel B460 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260 / 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for the M2_2 slot only Supports Intel Smart Response Technology for Intel Core processors
Audio	1x front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 Years Warranty
