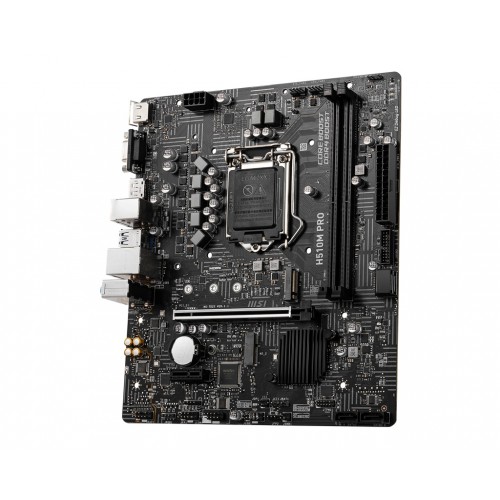

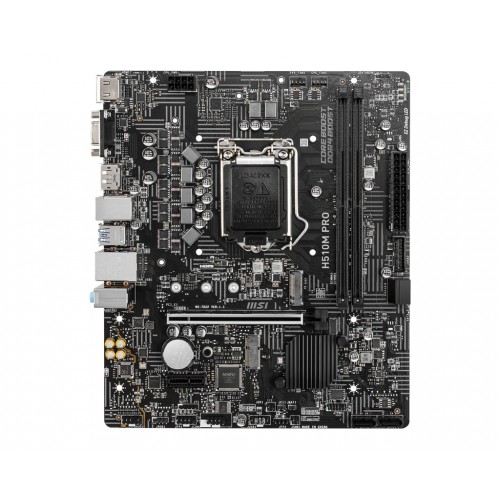

MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

Model: H510M PRO
Supports 10th Gen Intel Core, 11th Gen, Pentium Gold & Celeron processors
DDR4 Memory, up to 3200(Max) MHz
LGA 1200 socket
PCIe 4.0, Turbo M.2

Available EMI Offer

TK 8800

~~TK 9440~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
Chipset	Intel H510 Chipset
Form Factor	mATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot (From CPU) - Support up to PCIe 4.0 for 11th Gen Intel CPU - Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket	1x M.2 slot with E key for WiFi module only(M2_2)
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	support up to 64GB
Graphics

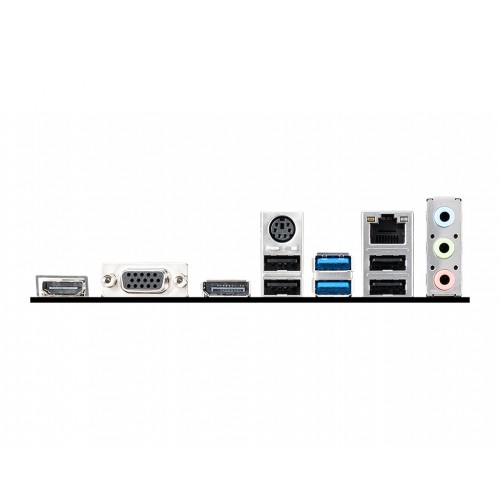

Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
USB (s)	- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) - 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)	1x Intel I219V 1Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) - M2_1 slot (From H510 Chipset) - Supports up to PCIe 3.0 x4 - Supports SATA 6Gb/s1 - Supports 2242/ 2260/ 2280 storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
