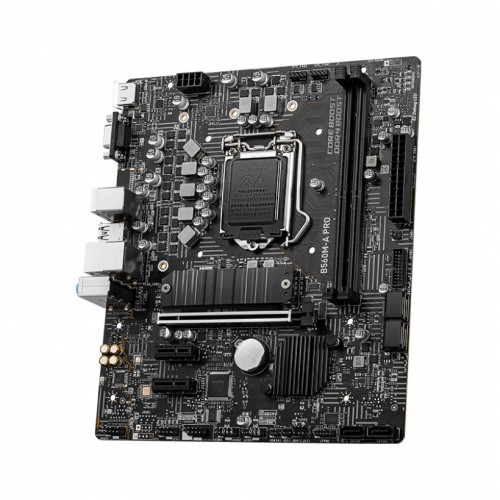

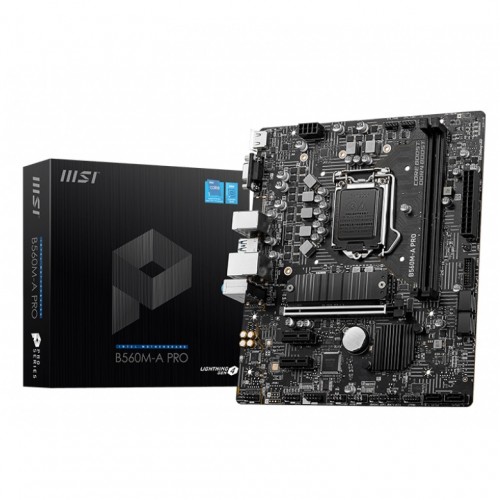

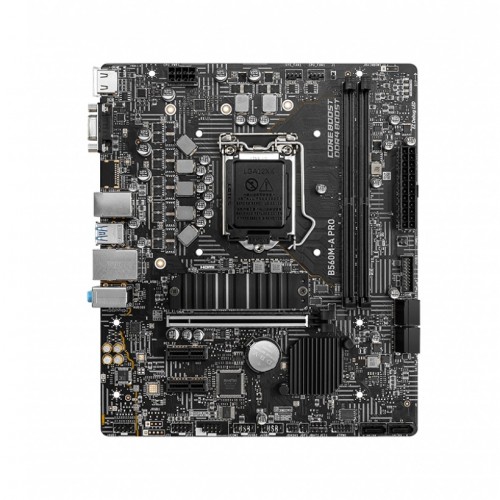

MSI B560M-A PRO Intel 11th Gen mATX Motherboard

Computer Components > Motherboard > MSI (INTEL)

MSI B560M-A PRO Intel 11th Gen mATX Motherboard

Model: MSI B560M-A PRO
Supports 10th and 11th Gen Processors
2.5G LAN & Core Boost
Audio Boost, DDR4 Boost
Lightning Fast Experience

TK 9500

~~TK 10500~~

Brand:

msi

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200
Chipset	Intel B560 chipset
BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
Form Factor	Miro-ATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)
Expansion Slots
PCI	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chpiset)
M.2 Socket	1x M.2 slot (Key M) Supports up to PCIe 4.0x4 (From CPU) Available on 11th Gen Intel CPU Supports PCIe 3.0x4 (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
Memory
Type	DDR4
Slots	2x memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64GB
Graphics
Graphics	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
D-Sub (s)	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
LAN Port (s)	1x Realtek 8125B 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M) Supports up to PCIe 4.0x4 (From CPU) Available on 11th Gen Intel CPU Supports PCIe 3.0x4 (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	3 Years
