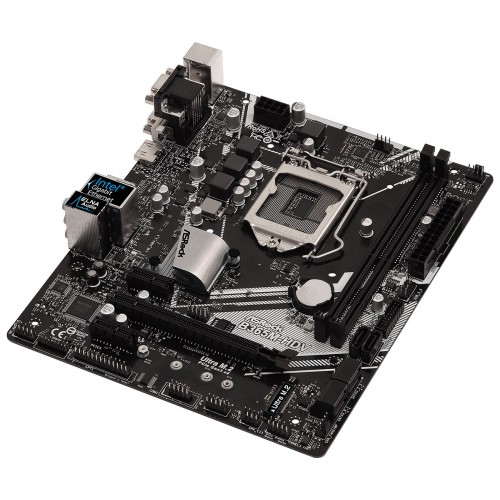

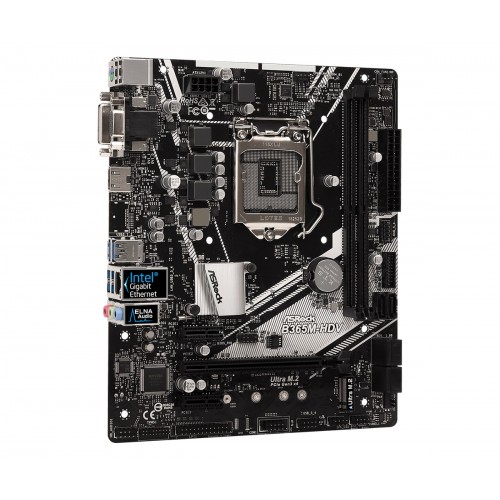

Asrock B365M-HDV 9th Gen Super Alloy Micro ATX Motherboard

Computer Components > Motherboard > Asrock (INTEL)

Asrock B365M-HDV 9th Gen Super Alloy Micro ATX Motherboard

Model: Asrock B365M-HDV
Supports 9th and 8th Gen Intel Core processors
Max. Memory support: 64GB
Chipset: Intel B365
Socket 1151

TK 7000

~~TK 7500~~

Brand:

ASRock

Product Details

Specification

Basic Information
Supported CPU	- Supports 9th and 8th Gen Intel Core Processors (Socket 1151) - Supports CPU up to 95W - Supports Intel Turbo Boost 2.0 Technology
Chipset	- Intel B365
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor Design
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection - ELNA Audio Caps
Expansion Slots
PCI	- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
M.2 Socket	- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Memory
Type	- Dual Channel DDR4 Memory Technology
Slots	- 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots
Supported Memory	- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory	64GB
Graphics
Graphics	- Supports Intel UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Connector & Ports
HDMI	1 x HDMI Port
D-Sub (s)	- 1 x D-Sub Port
DVI-D (s)	- 1 x DVI-D Port
USB (s)	Connector: - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports
LAN Port (s)	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage	- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio	Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone

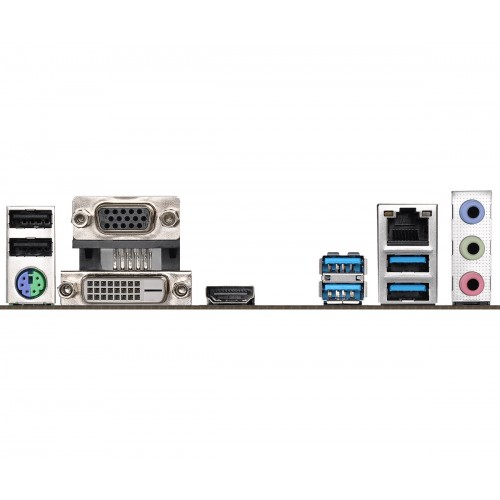

Internal I/O Ports	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x Print Port Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x TPM Header
Warranty Information
Manufacturing Warranty	03 years warranty
