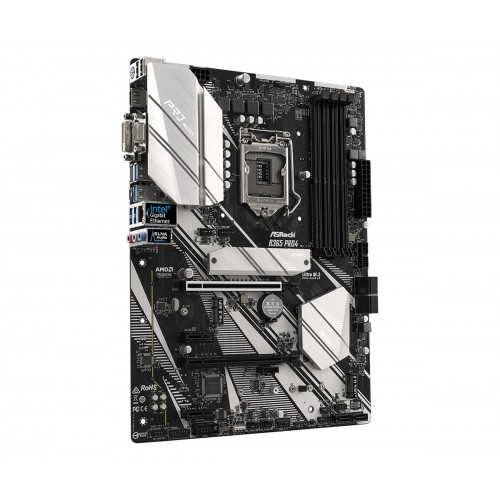

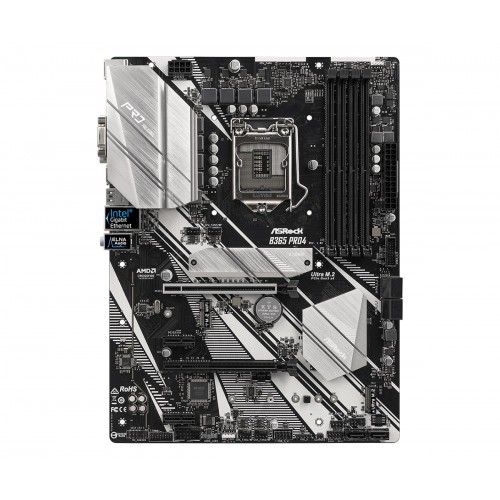

Asrock B365 Pro4 9th Gen Motherboard

Computer Components > Motherboard > Asrock (INTEL)

Asrock B365 Pro4 9th Gen Motherboard

Model: Asrock B365 Pro4
Supports 9th and 8th Gen Intel Processor
Socket 1151
Chipset Intel B365
Max. capacity memory: 64GB

Available EMI Offer

TK 9000

~~TK 11000~~

Brand:

ASRock

Product Details

Specification

Basic Information
Supported CPU	-Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology
Chipset	Intel B365
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
Form Factor	- ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm - Solid Capacitor design
Expansion Slots
PCI	-2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
M.2 Socket	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DDR4 DIMM Slots
Supported Memory	-Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) -Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory	64GB
Graphics
Graphics	-Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 -Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

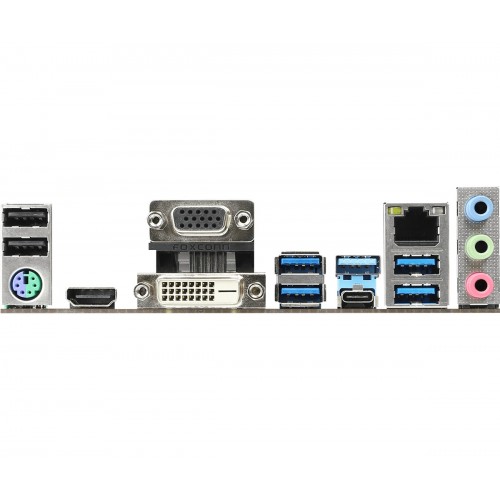

Connector & Ports
HDMI	1 x HDMI Port
D-Sub (s)	1 x D-Sub Port
DVI-D (s)	1 x DVI-D Port
USB (s)	- 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s)	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	- 1 x COM Port Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x TPM Header
Warranty Information
Manufacturing Warranty	03 years
