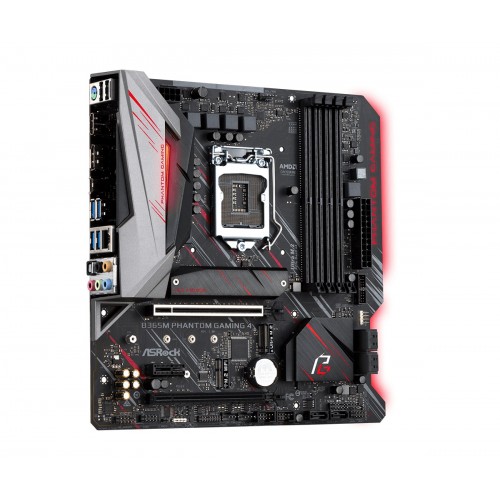

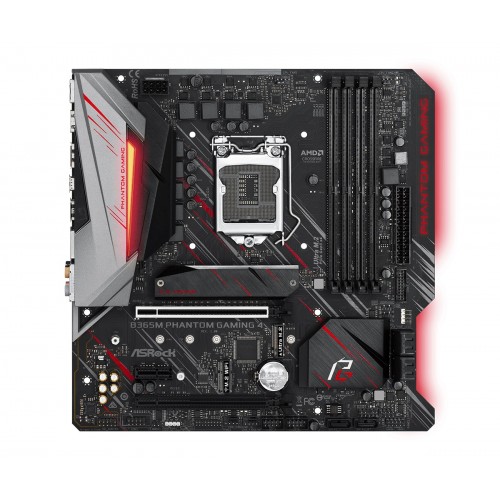

Asrock B365M Phantom Gaming 4 9th Gen Motherboard

Computer Components > Motherboard > Asrock (INTEL)

Asrock B365M Phantom Gaming 4 9th Gen Motherboard

Model: Asrock B365M Phantom Gaming 4
Supports 9th and 8th Gen Intel Core Processors
Support Socket 1151
Chipset Intel B365
Max 64GB Memory Support

Available EMI Offer

TK 10200

~~TK 11500~~

Brand:

ASRock

Product Details

Specification

Basic Information
Supported CPU	-Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology
Chipset	Intel B365
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT, DRAM, PCH 1.0V, VCCSA, VCCST Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 9.6-in x 9.52-in, 24.4 cm x 24.2 cm
Expansion Slots
PCI	2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket	1 x M.2 Socket
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DDR4 DIMM Slots
Supported Memory	Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory	64 GB
Graphics
Graphics	- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

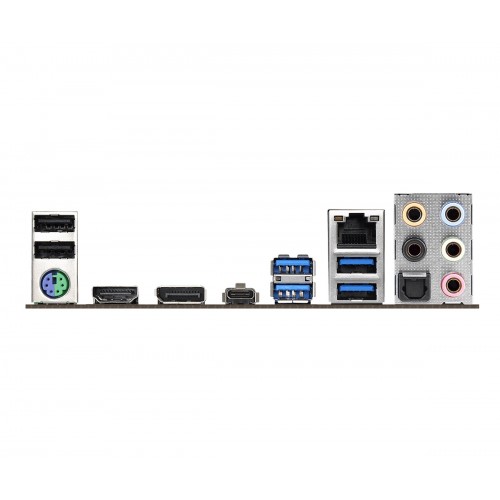

Connector & Ports
HDMI	1 x HDMI Port
USB (s)	- 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s)	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio	HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Ports	- 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Post Status Checker (PSC)
TPM (Trusted Platform Module )	1 x TPM Header
Warranty Information
Manufacturing Warranty	03 years
