Product Details
Specification

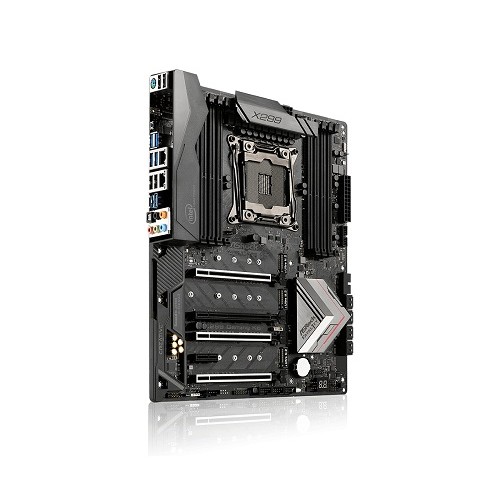

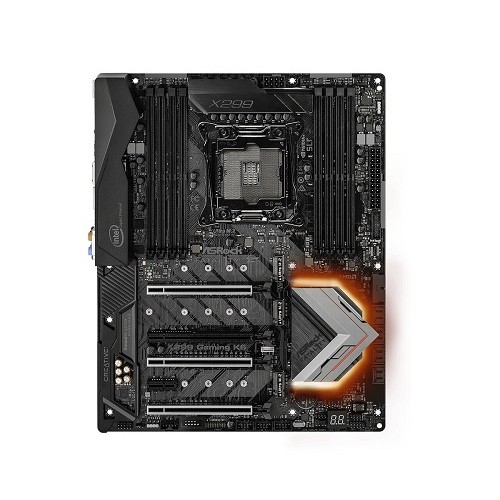

| Motherboard | ||
| Chipset | Intel® X299 | |
| Slots | 4 x PCI Express 3.0 x16 Slots* - 1 x PCI Express 3.0 x1 Slot** - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™*** - Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™*** - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) **If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0. If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x0/x0 or x8/x4/x8/x0. Supports NVMe SSD as boot disks **If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI Express module up to Gen3 x2 (16 Gb/s). ***3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 44 lanes. |
|
| Supported Processors | Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket - Digi Power design - 11 Power Phase design - Supports Intel® Turbo Boost Max Technology 3.0* - Supports ASRock Hyper BCLK Engine III *Please note that the 4-Core processors only support Intel® Turbo Boost Technology 2.0. |
|
| Max Memory | Quad Channel DDR4 Memory Technology - 8 x DDR4 DIMM Slots - Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports non-ECC RDIMM (Registered DIMM) - Max. capacity of system memory: 128GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
|
| BIOS | 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD, PEGRCOMP Voltage Multi-adjustment |
|
| Onboard Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Front Out port - Individual PCB Layers for R/L Audio Channel - 15μ Gold Audio Connector - Supports Creative Sound Blaster™ Cinema 3 |
|
| Onboard LAN | Gigabit LAN 10/100/1000 Mb/s - 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE *Teaming is supported on Windows® 10 RS2 and above. |
|
| Warranty | 03 Years | |
Important Note
- The order of the product will be delivered regardless of stock. For inevitable reasons, delivery of the product may take longer than the seller promised delivery time.
- Tanbinas has the ability to cancel your order at any time, even after order confirmation. In this case, if you do not accept after giving the courier for refund information (Bikash No / Rocket No / Card No. etc.) and product delivery in advance, the product will be refunded within the maximum 10 working days after returning the product from that courier.
- In case of any products that are priced in the packet and if for any reason more than that, you will have to register Complain within the maximum 48 hours by mail to complain@tanbinas.com. The additional cost you pay will be refunded through Bkash within 10 business days if your Compliance is correct.
