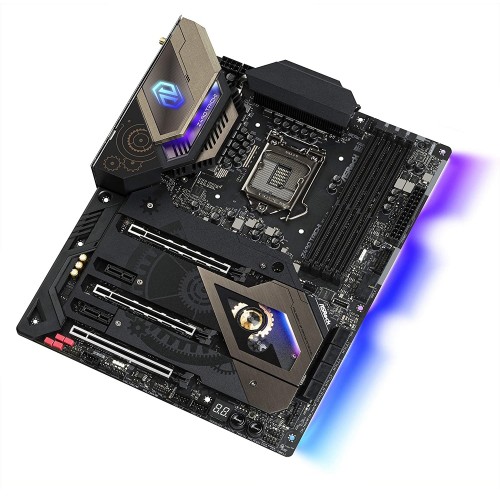

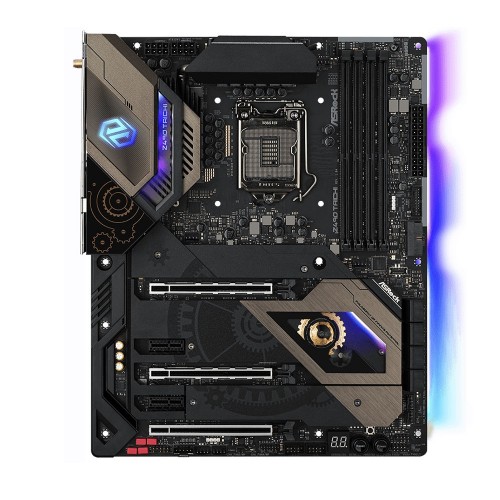

Asrock Z490 Taichi 10th Gen DDR4 Motherboard

Computer Components > Motherboard > Asrock (INTEL)

Asrock Z490 Taichi 10th Gen DDR4 Motherboard

Model: Asrock Z490 Taichi
8 SATA3, 2 Ultra M.2(PCIe Gen3 x4 & SATA3), 1 Ultra M.2(PCIe Gen3 x4)
Chipset: Intel Z490
Supports 10th Gen Intel(Socket 1200)
15 Power Phase Design

Available EMI Offer

TK 40000

Brand:

ASRock

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 15 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel Z490
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VPPM, VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - WIMA Audio Capacitors (For Front Outputs) - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
Expansion Slots
PCI	- 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))* - 2 x PCI Express 3.0 x1 Slots - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket	1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
Memory
Type	DDR4
Supported Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
Maximum Memory	128GB
Graphics
Graphics	- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
Connector & Ports
HDMI	1 x HDMI 1.4
Display Port (s)	1 x DisplayPort
USB (s)	2 x USB 2.0 Headers 2 x USB 3.2 Gen1
LAN Port (s)	2 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage	6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage
Internal I/O Ports	2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ASMedia ASM3242) (Supports ESD Protection)* 5 x USB 3.2 Gen1 Ports (Supports ESD Protection)** 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Intel® Z490) (Supports ESD Protection) - 1 x Clear CMOS Button - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED
TPM (Trusted Platform Module )	1 x SPI TPM Header
Warranty Information
Manufacturing Warranty	03 Years Warranty
