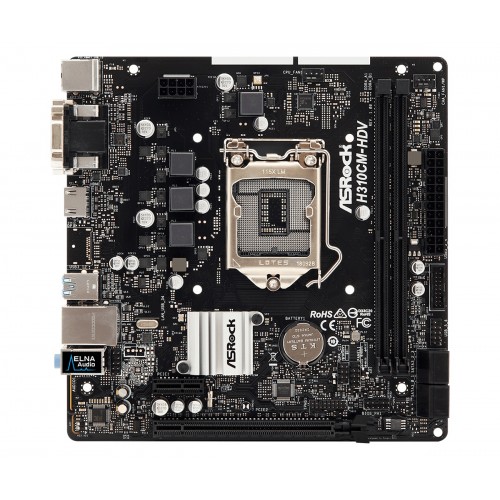

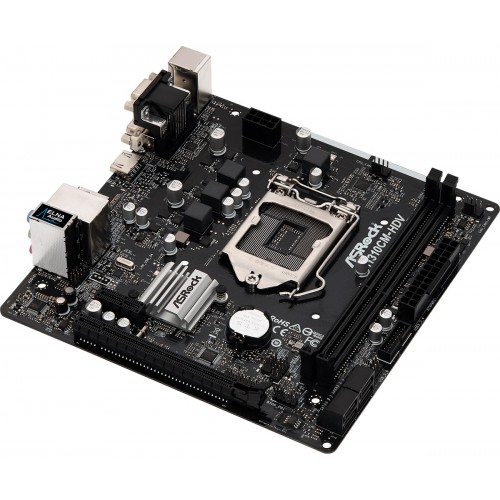

ASRock H310CM-HDV 9th Gen Micro ATX Motherboard

Computer Components > Motherboard > Asrock (INTEL)

ASRock H310CM-HDV 9th Gen Micro ATX Motherboard

Model: ASRock H310CM-HDV
Supports 9th and 8th Gen Intel Processor
Supports Socket 1151
Supports DDR4 2666 Memory
Max. capacity memory: 64GB

TK 6900

~~TK 7500~~

Brand:

ASRock

Product Details

Specification

Basic Information
Supported CPU	Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
Chipset	Intel® H310
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.05V Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design
Expansion Slots
PCI	- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x1 Slot
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DDR4 DIMM Slots
Supported Memory	Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots
Maximum Memory	64GB
Graphics
Graphics	- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

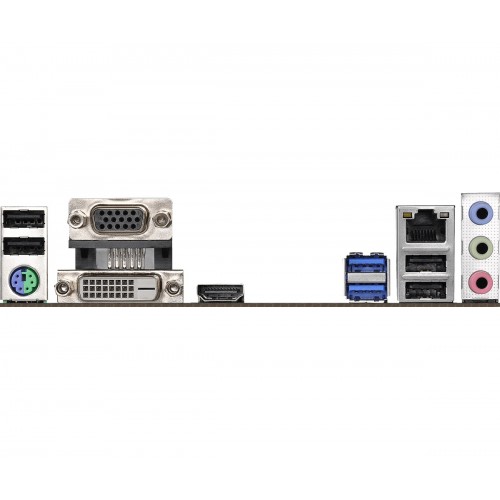

Connector & Ports
HDMI	1 x HDMI Port
D-Sub (s)	1 x D-Sub Port
DVI-D (s)	1 x DVI-D Port
USB (s)	-4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s)	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	- 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header
TPM (Trusted Platform Module )	- 1 x TPM Header
Warranty Information
Manufacturing Warranty	03 years
