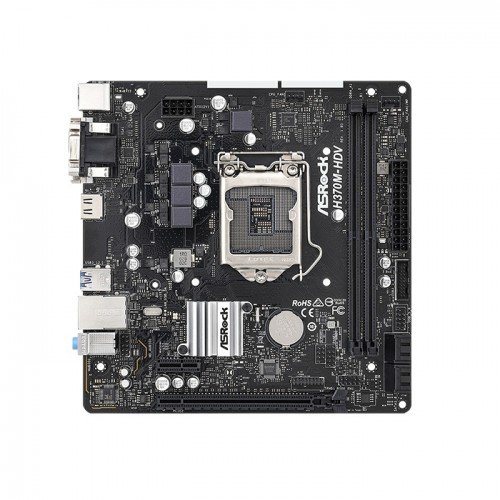

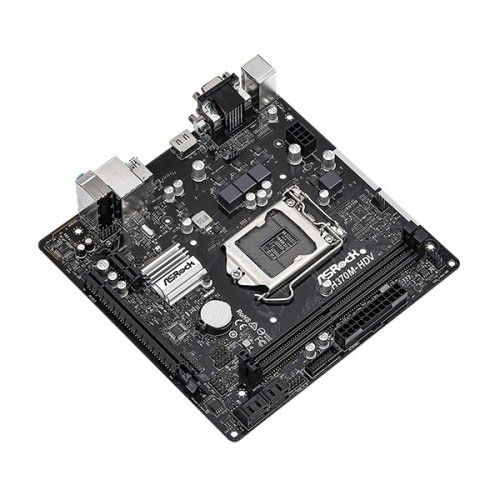

ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard

Computer Components > Motherboard > Asrock (INTEL)

ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard

Model: H370M-HDV
Supports 9th and 8th Gen Intel Core Processors
Up to 2666 MHz RAM
4 Power Phase design
Intel Turbo Boost 2.0

Available EMI Offer

TK 6700

~~TK 7000~~

Brand:

ASRock

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Supports 9th and 8th Gen Intel Core Processors (Socket 1151) Supports CPU up to 95W 4 Power Phase design Supports Intel Turbo Boost 2.0 Technology
Chipset	Intel H370
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support DRAM, PCH 1.05V Voltage Multi-adjustment
Form Factor	Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm Solid Capacitor design
Audio	7.1 CH HD Audio (Realtek 887/897 Audio Codec) Supports Surge Protection
Expansion Slots
PCI	1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot
Memory
Type	DDR4
Slots	2 x DIMM Slots
Supported Memory	DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Dual Channel DDR4 Memory Technology
Maximum Memory	64GB
Graphics
Graphics	Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics DirectX 12 HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Connector & Ports
HDMI	1 x HDMI Port (HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz)
D-Sub (s)	1 x D-Sub Port
DVI-D (s)	1 x DVI-D Port
USB (s)	1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
LAN Port (s)	PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports PXE
Supported Storage	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug
Audio	1 x Front Panel Audio Connector HD Audio Jacks: Line in / Front Speaker / Microphone

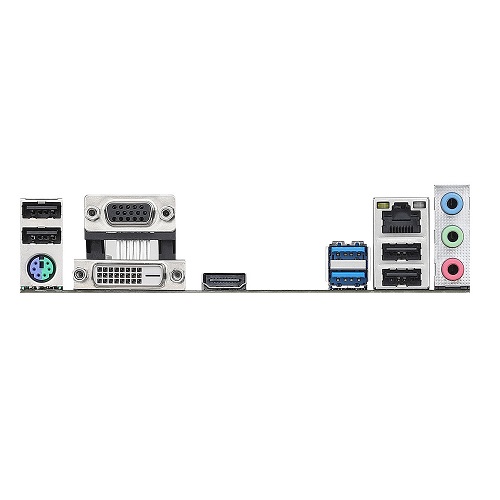

Internal I/O Ports	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	- 1 x TPM Header
Warranty Information
Manufacturing Warranty	03 years warranty
