Asus TUF B450M-PLUS GAMING DDR4 AMD AM4 Motherboard

Model: Asus TUF B450M-PLUS Gaming
AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen
Military-grade TUF components
TUF Protection with SafeSlot
ASUS exclusive Aura Sync RGB lighting

Available EMI Offer

TK 9600

~~TK 10400~~

Brand:

Asus

Product Details

Basic Information
Supported CPU	AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
Chipset	AMD B450
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search
Form Factor	mATX
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode, x8 mode, max at x4 mode), 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
M.2 Socket	1 x M.2 Socket 3 (type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Memory
Type	DDR4
Slots	4
Supported Memory	3466(O.3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHzC.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz
Maximum Memory	64GB
Graphics
Graphics	Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

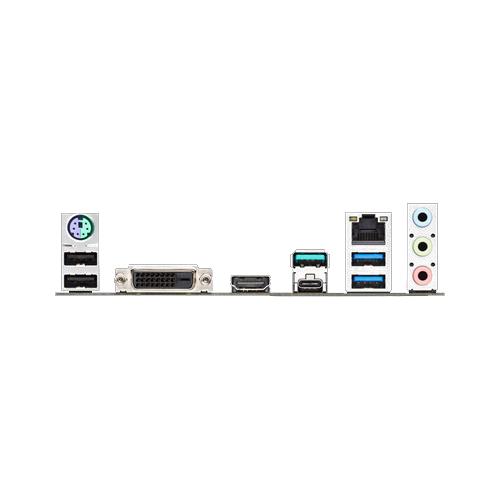

Connector & Ports
HDMI	1 x HDMI
DVI-D (s)	1 x DVI-D
USB (s)	1 x USB3.1 Gen 1 Type-C, 1 x USB3.1 Gen 2, 4 x USB3.1 Gen 1
LAN Port (s)	Realtek RTL8111H TUF LAN Guard
Supported Storage	AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 AMD Athlon with Radeon Vega Graphics Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)1 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen st Generation Processors : - 2 x SATA 6Gb/s port(s) AMD B450 chipset : - 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio	Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
Internal I/O Ports	1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header
Warranty Information
Manufacturing Warranty	03 Years Warranty
