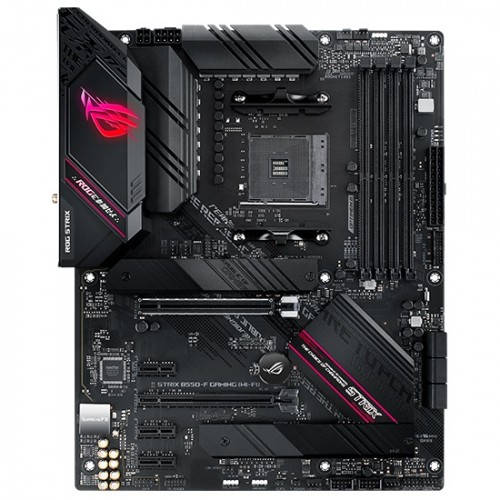

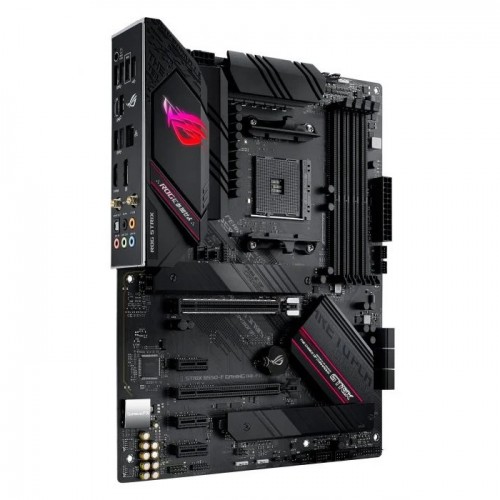

Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

Computer Components > Motherboard > ASUS (AMD)

Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

Model: Asus ROG Strix B550-F Gaming
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Best gaming connectivity
Best gaming connectivity
Industry-leading gaming audio

TK 20000

Brand:

Asus

Product Details

Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM slots
Supported Memory	4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory OptiMem II ECC Memory (ECC mode) support varies by CPU
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology

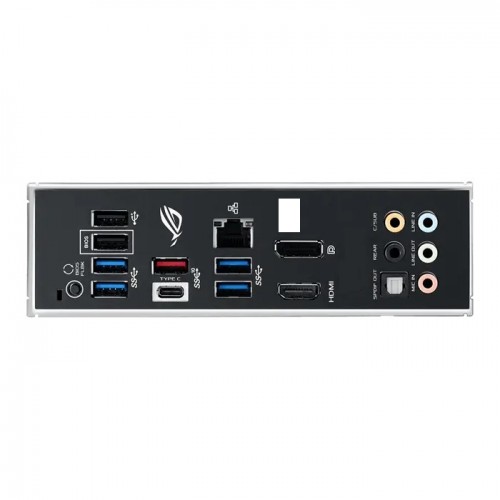

Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2
USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF in port(s) at the back panel - Audio Shielding - Premium Japanese audio capacitors - Audio Cover
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
Warranty Information
Manufacturing Warranty	03 Years Warranty
