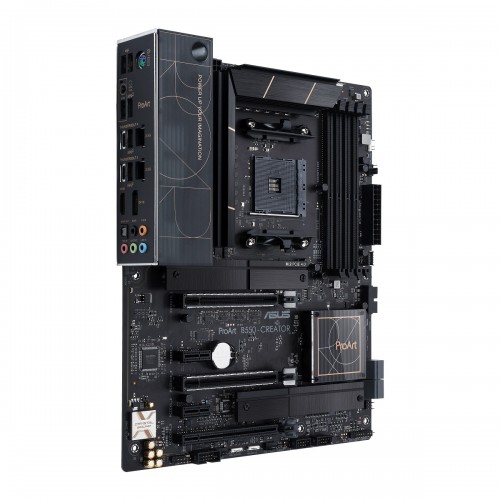

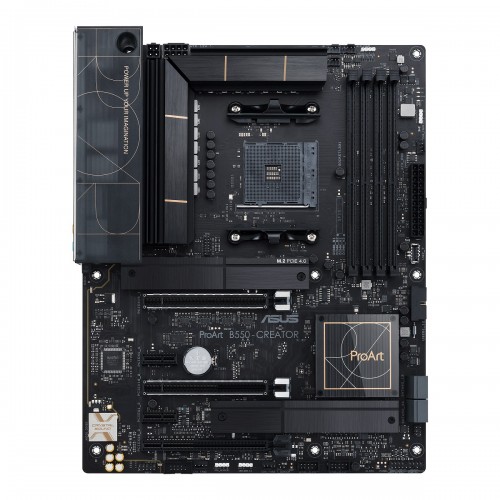

Asus PROART B550-CREATOR AM4 AMD ATX Motherboard

Computer Components > Motherboard > ASUS (AMD)

Asus PROART B550-CREATOR AM4 AMD ATX Motherboard

Model: PROART B550-CREATOR
AMD Ryzen 5000/ 4000G/ 3000 Series Desktop Processors
Unthrottled Performance
ProArt Gives You More
Advanced Security

Available EMI Offer

TK 24000

~~TK 27020~~

Brand:

Asus

Product Details

Basic Information
Supported CPU	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX: 30.5cm x 24.4cm
Expansion Slots
PCI	2 x PCIe 4.0/3.0 x16 (x16, x8/x8) AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD Ryzen 4000 G-Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8) AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4866(O.C)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD Ryzen 4000 G-Series Processors 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU
Maximum Memory	128GB
Graphics
Graphics	1 x HDMI 2.1 (4K@60Hz) 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs

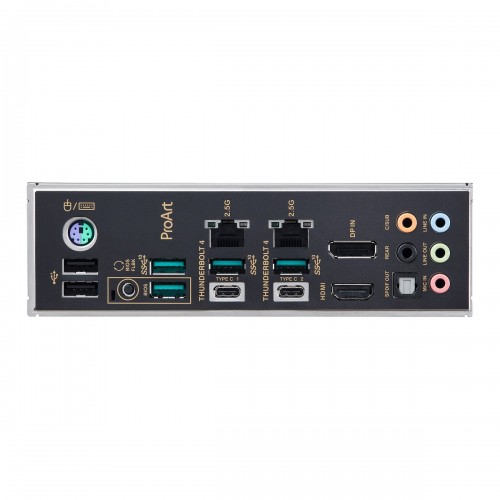

Connector & Ports
HDMI	1 x HDMI™ 2.1 (4K@60Hz)
Display Port (s)	1 x DisplayPort (Input only)
USB (s)	2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A)
LAN Port (s)	2 x Intel I225-V 2.5Gb Ethernet ports
Supported Storage	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Supports RAID 0, 1, 10
Audio	- Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit
Internal I/O Ports	2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 20-5 pin System Panel header 1 x Thermal Sensor header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	3 Years
