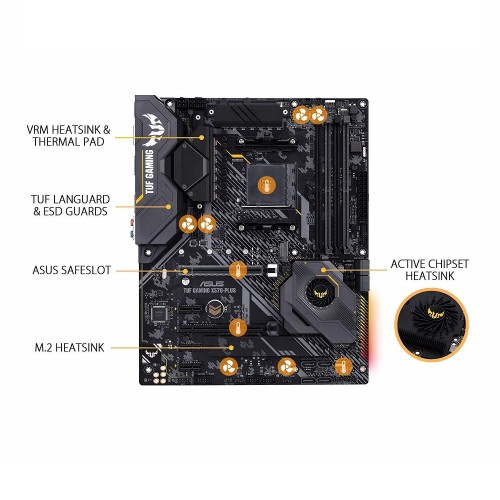

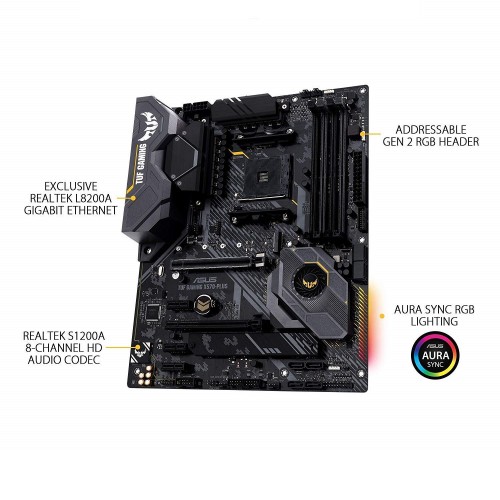

Asus TUF Gaming X570-Plus AM4 ATX Motherboard

Model: Asus TUF Gaming X570-Plus
Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Enhanced Power Solution
Comprehensive Cooling
Durable, Stable, Reliable

TK 24200

~~TK 25040~~

Brand:

Asus

Product Details

Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset	AMD X570
BIOS	256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM DDR4
Supported Memory	3rd Gen AMD Ryzen Processors 4400(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz Multi-GPU Support 3rd and 2nd Gen AMD Ryzen Processors AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors Supports AMD CrossFireX Technology

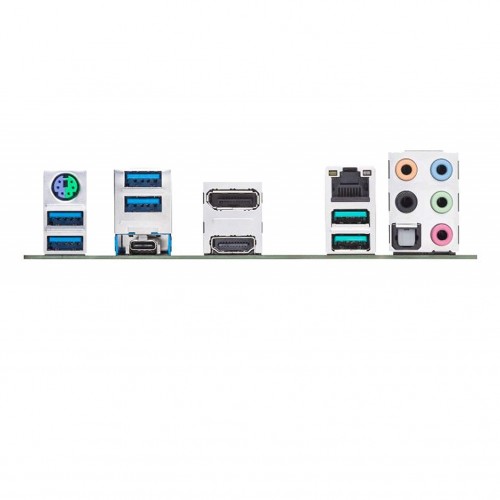

Connector & Ports
HDMI	1 x HDMI ( 4096 x 2160 @ 24 Hz)
Display Port (s)	1 x DisplayPort (4096 x 2160 @ 60 Hz)
USB (s)	3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s)	Realtek L8200A ASUS Turbo LAN Utility TUF LANGuard 1 x LAN (RJ45) port
Supported Storage	3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio	Realtek ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
Internal I/O Ports	2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
TPM (Trusted Platform Module )	1 x SPI TPM header
Warranty Information
Manufacturing Warranty	03 Years Warranty
