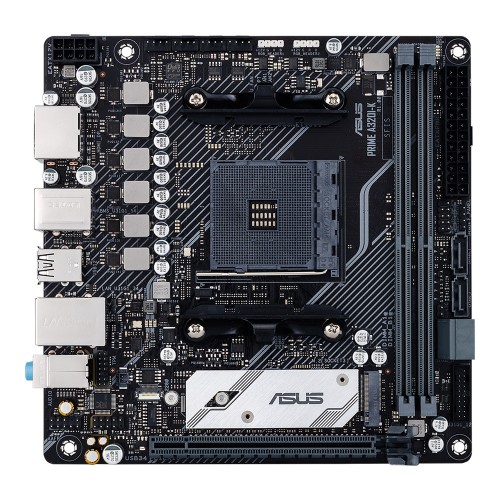

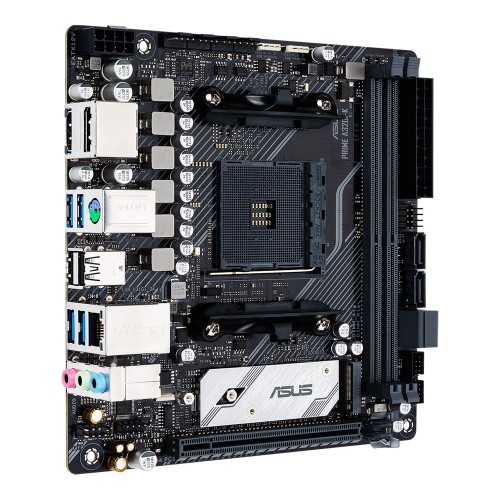

ASUS Prime A320I-K Mini ITX AMD Motherboard

Computer Components > Motherboard > ASUS (AMD)

ASUS Prime A320I-K Mini ITX AMD Motherboard

Model: ASUS Prime A320I-K
AMD AM4 Socket for 3rd/2nd/1st Generation AMD Ryzen Processors
Fan Xpert 2+
5X Protection III
One-stop controls

Available EMI Offer

TK 9400

~~TK 9770~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores
Chipset	AMD A320
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor	6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Expansion Slots
PCI	3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode)
M.2 Socket	3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA mode)
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DIMM
Supported Memory	3rd and 2nd Gen AMD Ryzen Processors: 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon Processors 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory	64 GB
Graphics
Graphics	Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Max Shared Memory	2048 MB

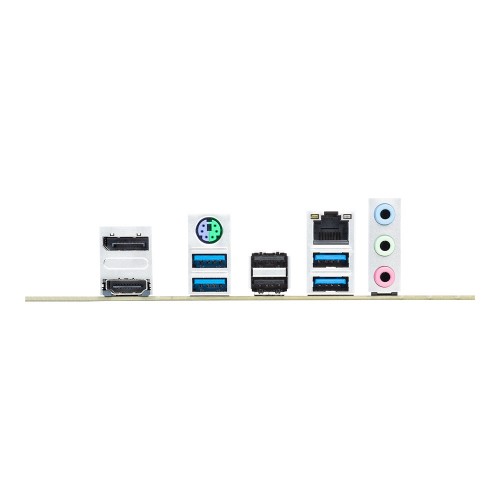

Connector & Ports
HDMI	1 x HDMI 1.4b (max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz)
Display Port (s)	1x DisplayPort (max. resolution 4096 x 2160 @ 60 Hz)
USB (s)	3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.0 port(s) (2 at mid-board) AMD A320 chipset : 4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board)
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s) ASUS LAN Guard
Supported Storage	3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (1 x 4 -pin) 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)
TPM (Trusted Platform Module )	1 x TPM header
Warranty Information
Manufacturing Warranty	03 years
