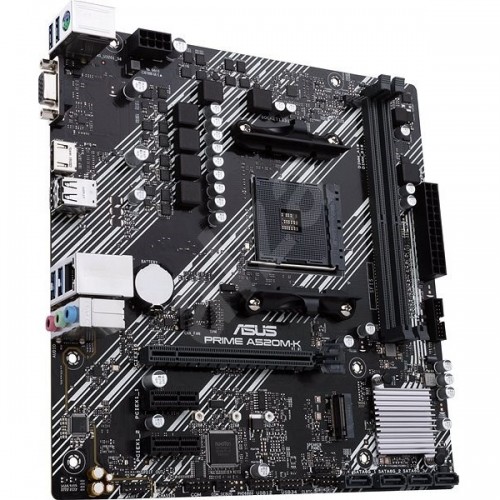

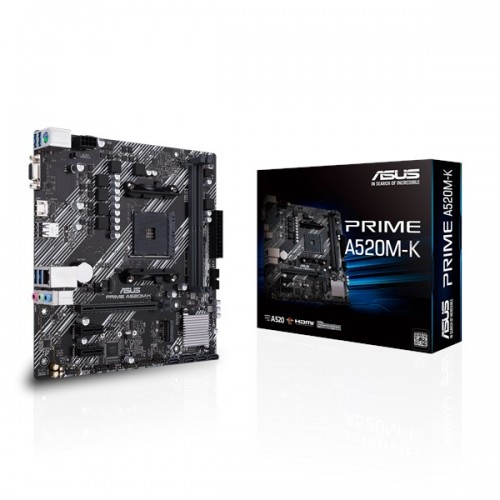

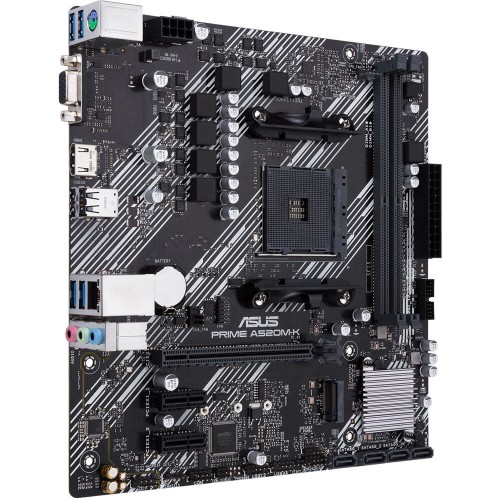

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Computer Components > Motherboard > ASUS (AMD)

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Model: Asus Prime A520M-K
AMD AM4 Socket for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
5X Protection III
Ultrafast connectivity
Comprehensive cooling

Available EMI Offer

TK 7700

~~TK 8250~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	AMD A520
BIOS	256 MB Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Expansion Slots
PCI	AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DIMM
Supported Memory	4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Maximum Memory	64GB, DDR4
Connector & Ports
HDMI	1 x HDMI 2.1 (4K@60Hz)
D-Sub (s)	1 x D-Sub
USB (s)	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)	Realtek RTL8111H 1GB Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports	1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s)
TPM (Trusted Platform Module )	1 x SPI TPM header
