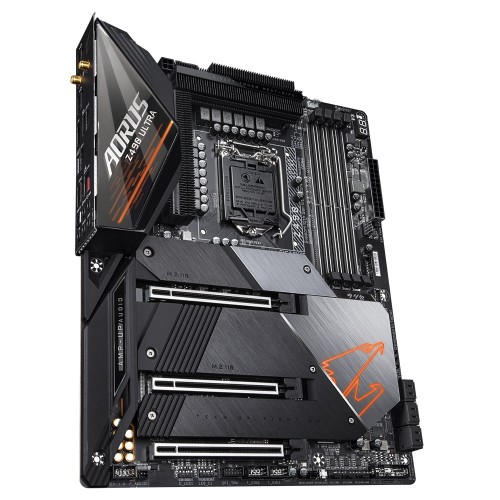

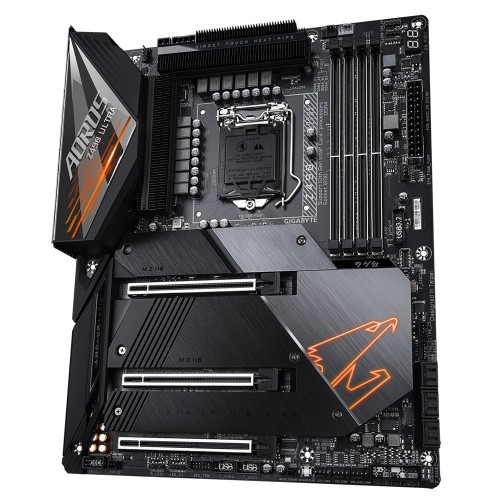

Gigabyte Z490 Aorus Ultra 10th Gen WiFi ATX Motherboard


  • Model: Gigabyte Z490 Aorus Ultra
  • Intel Socket LGA1200 for 10th Gen Processors
  • Chipset: Intel Z490
  • CrossFire, SLI Supported
  • 4 x DIMM, Max. 128GB DDR4

TK 29700

TK 32550

Brand:

Gigabyte

Quantity




Product Details

Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset Intel Z490 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 DIMM
Supported Memory Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory 512MB

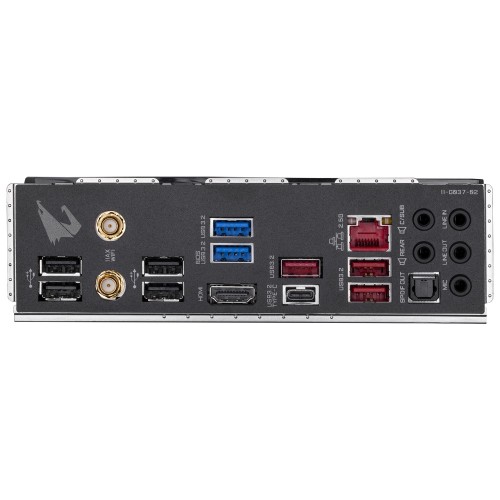

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
USB (s) Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless Communication module:
Intel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
Audio Realtek ALC1220-VB codec
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x noise detection header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty 03 Years
