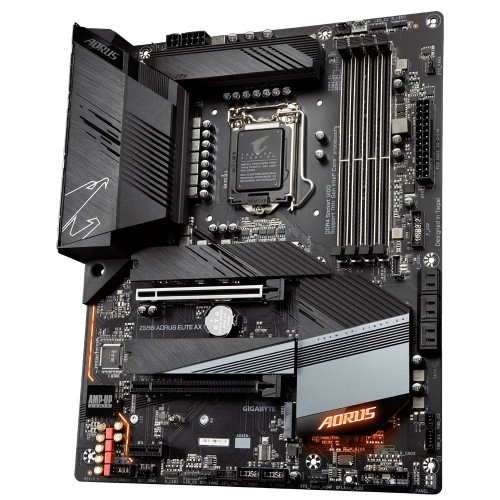

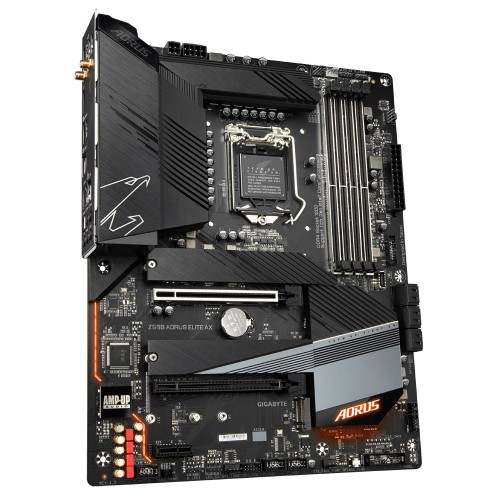

GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard

Computer Components > Motherboard > GIGABYTE (INTEL)

GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard

Model: Z590 AORUS Elite AX 11th Gen
Supports 10th and 11th Gen Intel Core Processors
Advanced Thermal Design
Full PCI Express 4.0 Design
Intel WiFi 6 802.11ax 2T2R & BT5

Available EMI Offer

TK 26700

~~TK 28750~~

Brand:

Gigabyte

Product Details

Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Chipset	Intel Z590 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220-VB codec High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2B_SB) 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 0th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

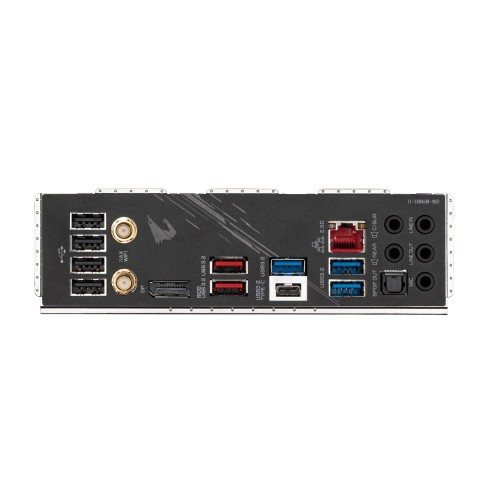

USB (s)	1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2B_SB) 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	3 Years
