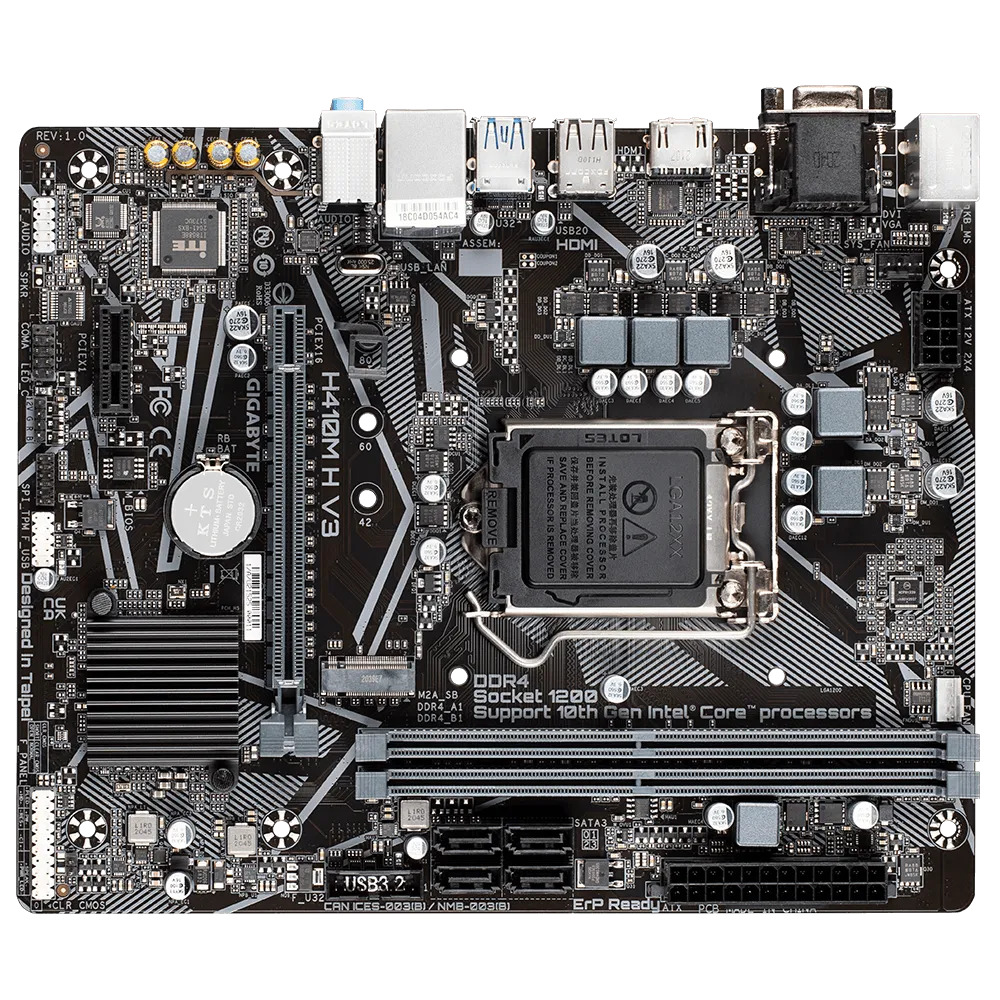

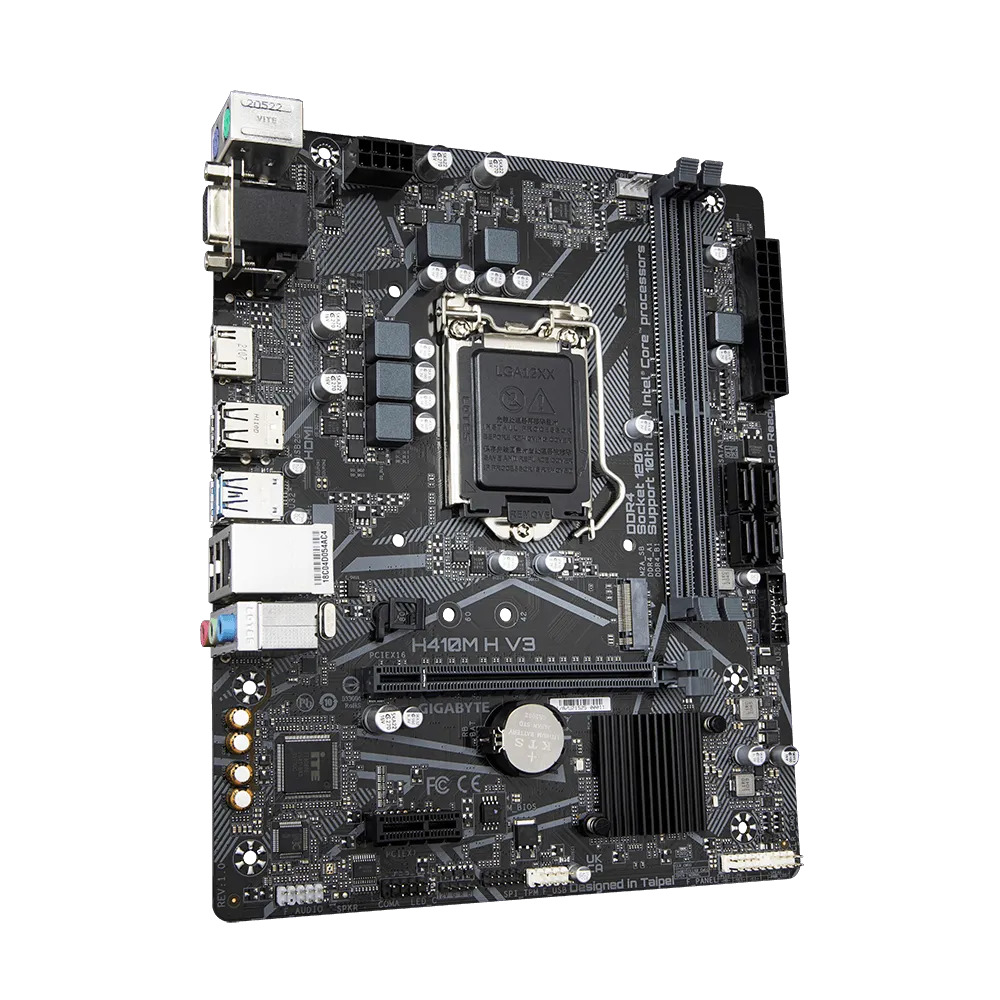

1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
2. L3 cache varies with CPU

1. Intel® H510 Express Chipset

1. Intel® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel

1. Gigabit Ethernet Chip (1 Gbps/100 Mbps)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot

Storage Interface

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x RGB LED strip header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
12. 1 x serial port header
13. 1 x Clear CMOS jumper

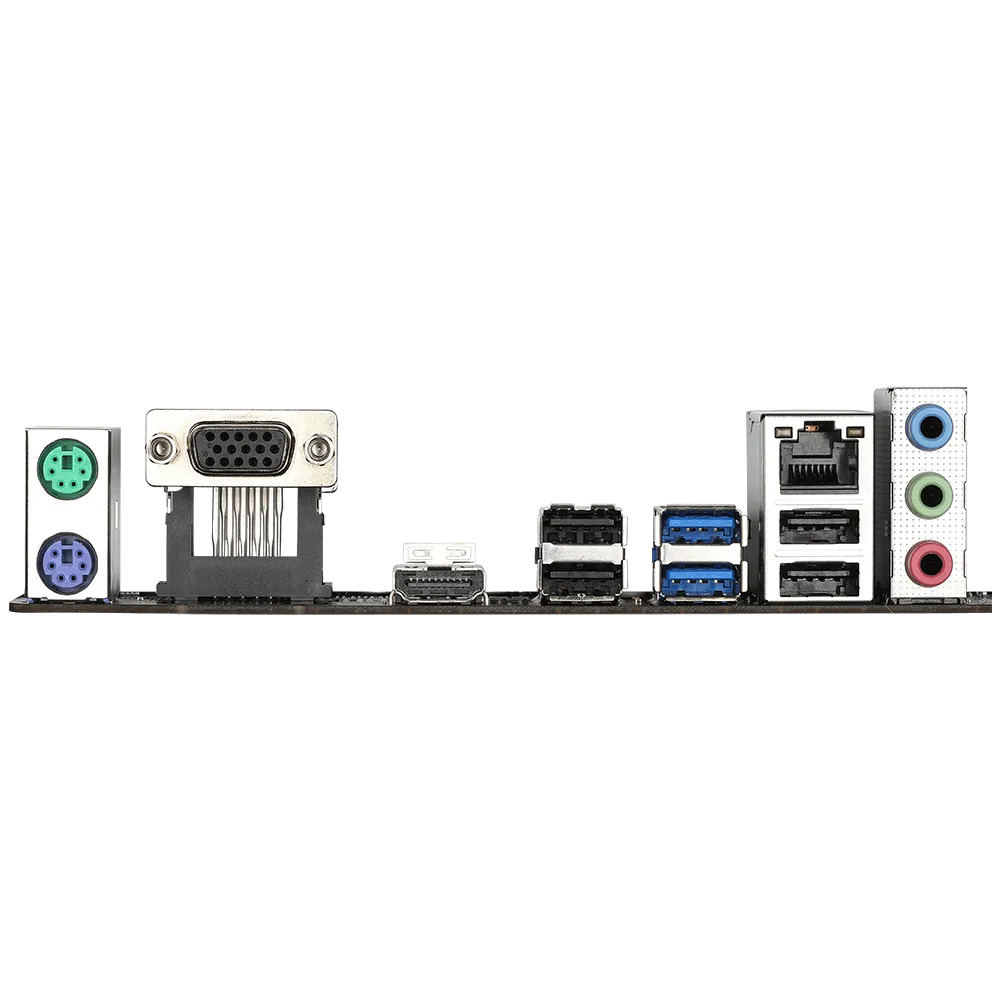

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.2 Gen 1 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

Bundled Software

1. Norton® Internet Security (OEM version)
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

1. Support for Windows 10 64-bit

Form Factor

1. Micro ATX Form Factor; 22.6cm x 18.5cm
