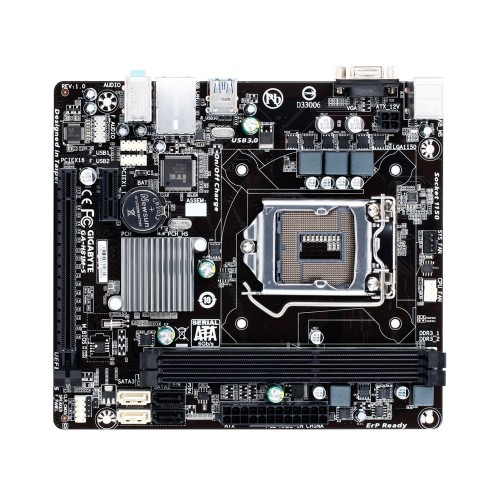

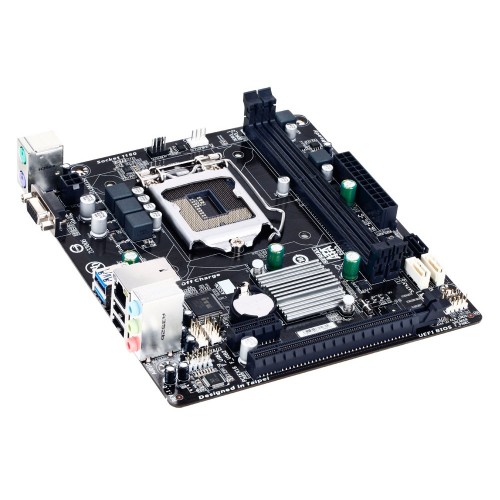

Gigabyte H81M-S 4th Gen Intel Motherboard

Computer Components > Motherboard > GIGABYTE (INTEL)

Gigabyte H81M-S 4th Gen Intel Motherboard

Model: H81M-S
Supports 4th Generation Intel Core processors
LAN with high ESD Protection
Gigabyte Ultra Durable Technology
Solid capacitors for CPU VRM design

TK 6900

~~TK 7380~~

Brand:

Gigabyte

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Support for Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1150 package
Chipset	Intel H81 Express Chipset
BIOS	1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 19.0cm x 17.0cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot
Memory
Type	Dual Channel Architecture
Slots	2 x DDR3 DIMM sockets
Supported Memory	Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	16 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200
Max Shared Memory	1 GB

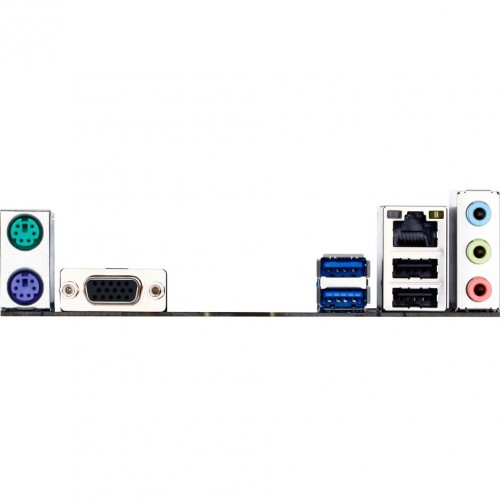

Connector & Ports
D-Sub (s)	1 x D-Sub port
USB (s)	2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit) 1 x RJ-45 port
Supported Storage	2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) 2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3)
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Support for Q-Flash Support for Xpress Install Support for APP Center @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
