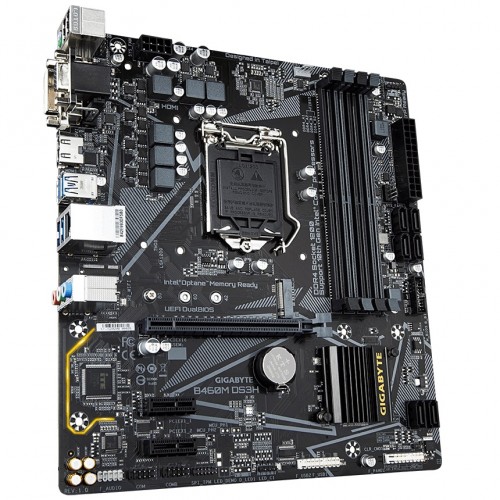

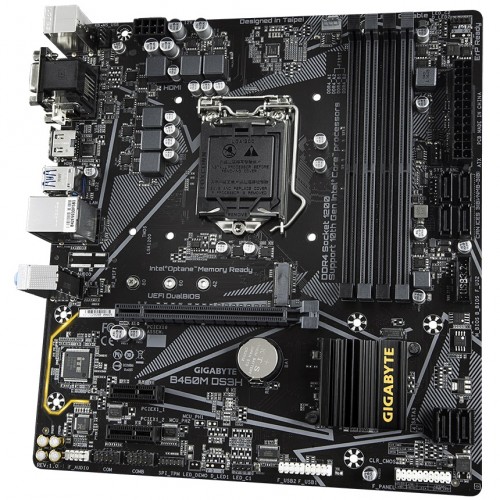

Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard


  • Model: Gigabyte B460M DS3H
  • Intel Socket LGA1200 for 10th Gen Processors
  • Intel Optane Memory Ready
  • High Quality Audio Capacitors
  • GIGABYTE Exclusive 8118 Gaming LAN

TK 9000

TK 9500

Brand:

Gigabyte




Product Details

Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Chipset Intel B460 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Intel Optane Memory Ready
Memory
Type Dual-channel architecture
Slots 4 x DDR4 DIMM
Supported Memory Intel Core i9/ i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz
Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Max Shared Memory 512MB

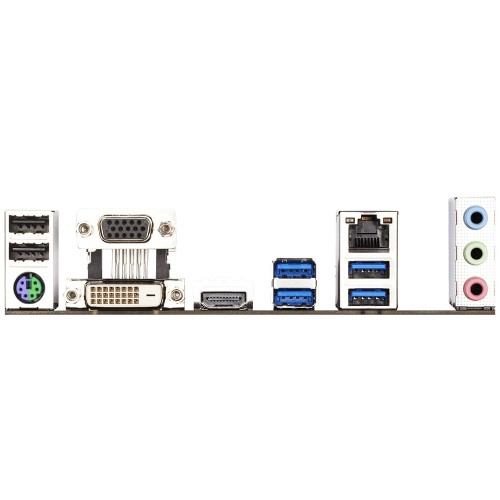

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
(Support for HDMI 1.4 version and HDCP 2.3.)
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
(The DVI-D port does not support D-Sub connection by adapter.)
USB (s) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x serial port headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty 03 Years
