Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Computer Components > Motherboard > GIGABYTE (INTEL)

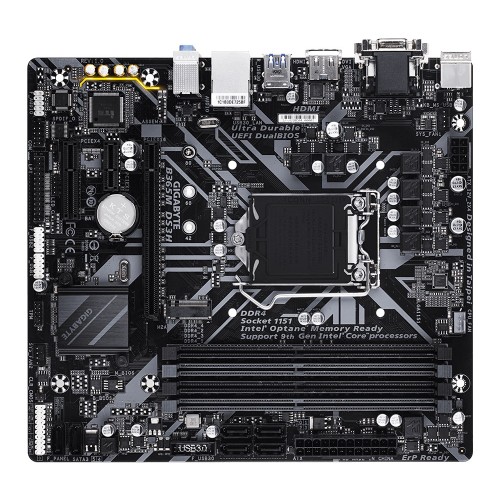

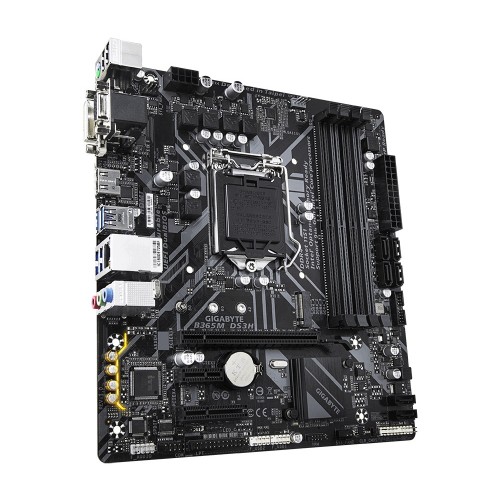

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Model: Gigabyte B365M DS3H
Supports 9th and 8th Gen Intel Core Processors
Dual Channel DDR4
New Hybrid Digital PWM Design
Ultra-Fast M.2 with PCIe Gen 3X4

TK 7300

~~TK 8900~~

Brand:

Gigabyte

Product Details

Basic Information
Supported CPU	9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
Chipset	Intel B365 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot
M.2 Socket	1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Memory
Type	DDR4
Slots	4
Supported Memory	2666/2400/2133 MHz
Maximum Memory	64GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz - The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz - Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time
Max Shared Memory	1 GB
Connector & Ports
HDMI	Yes ( 1.4 )
D-Sub (s)	Yes
DVI-D (s)	Yes
USB (s)	6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	Audio chipset : 2/4/5.1/7.1-channel Audio channel : Realtek ALC887
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty	03 Year Warranty
