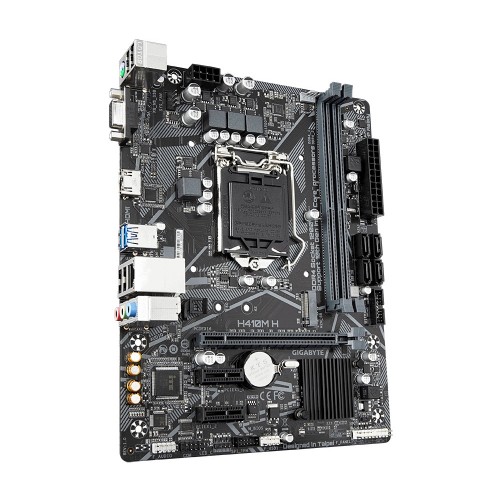

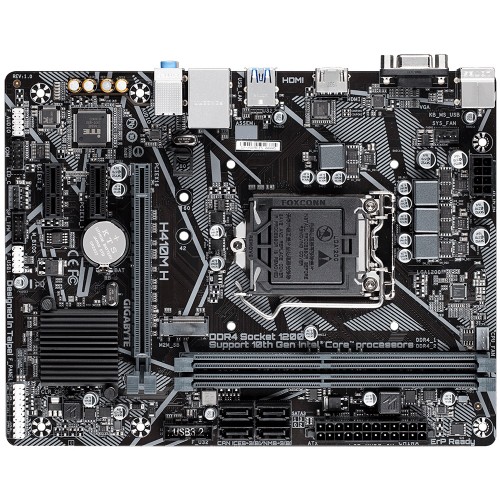

Gigabyte H410M H 10th Gen Micro ATX Motherboard

Computer Components > Motherboard > GIGABYTE (INTEL)

Gigabyte H410M H 10th Gen Micro ATX Motherboard

Model: Gigabyte H410M H
Intel Socket LGA1200 for 10th Gen Processors
8-Channel HD Audio
Smart Fan 5 features
Anti-Sulfur Resistors Design

TK 7500

~~TK 8680~~

Brand:

Gigabyte

Product Details

Basic Information
Supported CPU	Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU
Chipset	Intel H410 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Memory
Type	Dual-channel architecture
Slots	2 x DDR4 DIMM
Supported Memory	Intel® Core™ i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Maximum Memory	64 GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Max Shared Memory	512MB
Connector & Ports
HDMI	1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s)	4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	03 Years
