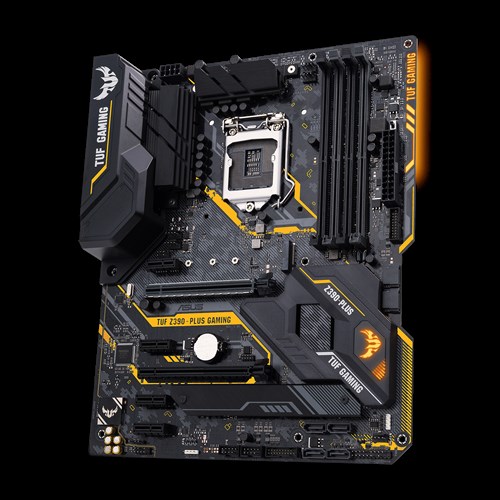

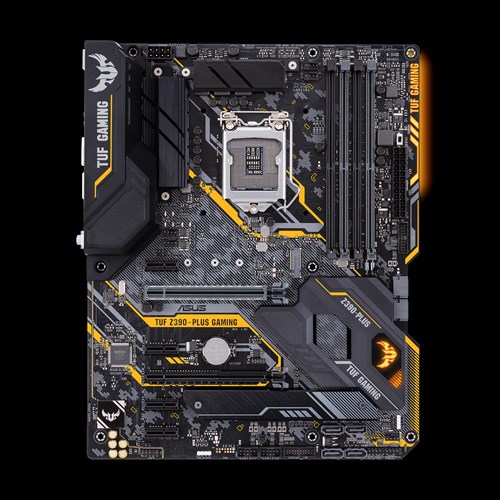

ASUS 9th Gen TUF Z390-PLUS GAMING ATX Gaming Motherboard

Model: TUF Z390-PLUS GAMING
CPU: 9th / 8th Generation Intel Processors
Chipset: Intel Z390
4 x DDR4 DIMM
6 x PCI Express slot

TK 18000

~~TK 20000~~

Brand:

Asus

Product Details

Basic Information
Supported CPU	Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 3.0
Chipset	Intel® Z390
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 1 4 x PCIe 3.0/2.0 x1 1 *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
M.2 Socket	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Memory
Type	4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Slots	Dual Channel Memory Architecture 4 x DIMM
Supported Memory	Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Mamory	64GB
Graphics
Graphics	Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

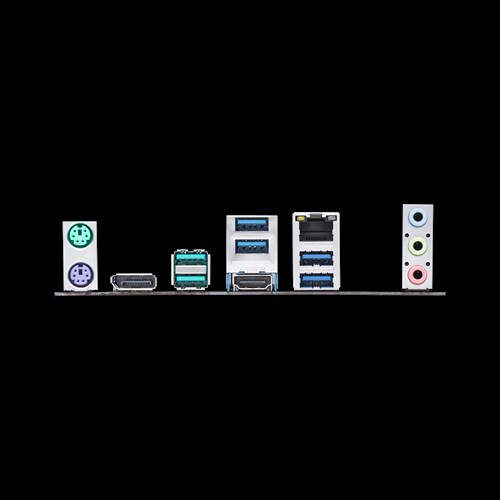

Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board)
LAN Port (s)	Intel® I219V, featuring Turbo LAN TUF LANGuard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Supported Storage	Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)3 6 x SATA 6Gb/s port(s), gray, *3 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
Audio	Realtek® ALC S1200A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports	2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 1-port connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector () 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector
Warranty Information
Manufacturing Warranty	3 Years Limited
