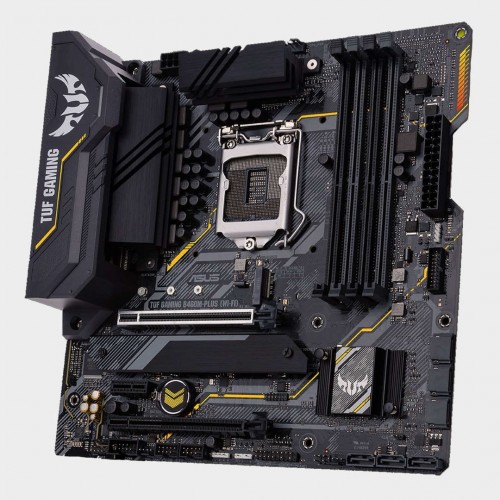

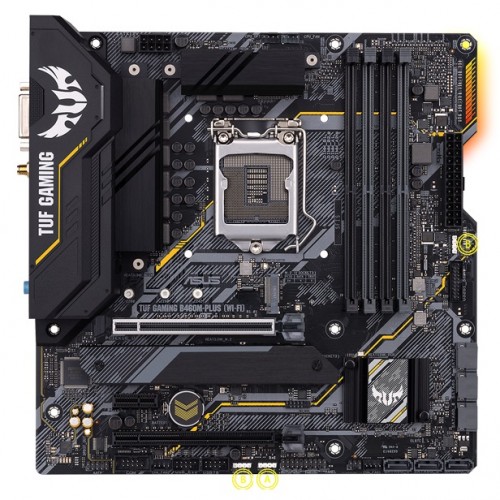

Asus TUF GAMING B460M-PLUS 10th Gen, 6 Intel Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus TUF GAMING B460M-PLUS 10th Gen, 6 Intel Motherboard

sus TUF GAMING B460M-PLUS
CPU Sockets - LGA1200
Chipset - Intel B460
Generation - 10th
Memory Channel - Dual Channel

Available EMI Offer

TK 13300

~~TK 14430~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B460 Express Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI	Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
M.2 Socket	Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 DIMM
Supported Memory	Support for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory	128 GB
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b 1 x DVI-D Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz
DVI-D (s)	1 x DVI-D
USB (s)	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I219-V 1Gb Ethernet
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - Exclusive DTS Custom for GAMING Headsets. - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
Warranty Information
Manufacturing Warranty	03 Years
