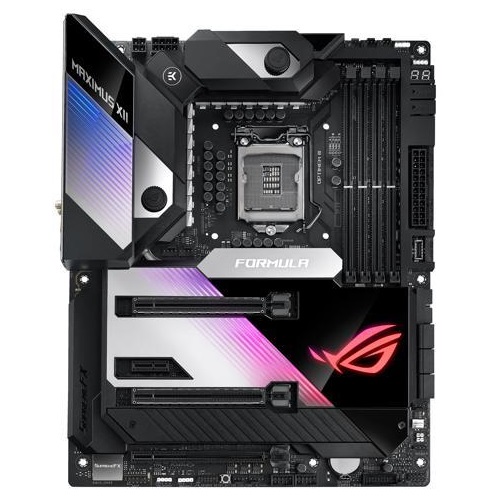

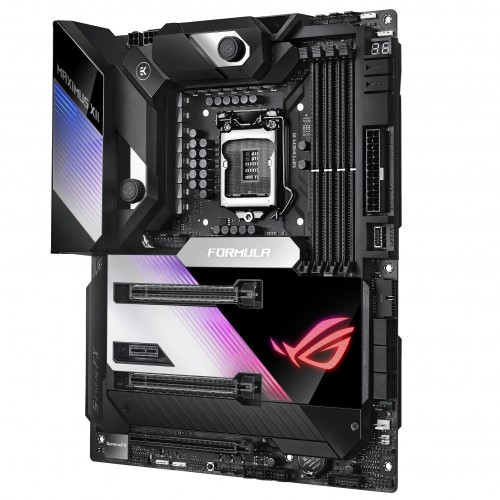

ASUS ROG MAXIMUS XII FORMULA Z490 Intel 10th Gen Wi-Fi ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

ASUS ROG MAXIMUS XII FORMULA Z490 Intel 10th Gen Wi-Fi ATX Motherboard

Model: ASUS ROG MAXIMUS XII FORMULA Z490
LGA 1200 socket for 10th-gen Intel Core desktop processors
Robust power delivery
Cooling & Performance
Intel Wi-Fi 6, 10 Gb Ethernet

Available EMI Offer

TK 49800

~~TK 53700~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z490
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Expansion Slots
PCI	Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DDR4 DIMM
Supported Memory	4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem III
Maximum Memory	128 GB
Graphics
Graphics	Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology

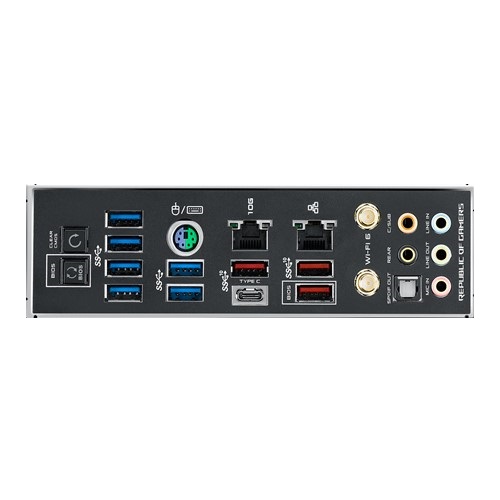

Connector & Ports
USB (s)	Intel I225-V 2.5Gb Ethernet Marvell AQtion AQC107 10Gb Ethernet ASUS LANGuard
LAN Port (s)	Intel I219-V 1Gb Ethernet
Supported Storage	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports: Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors - Audio Cover
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 2 x W_OUT header 3 x W_FLOW header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 3 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x ReTry button 1 x System panel connector 1 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x Start button 1 x FlexKey button
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 Years
