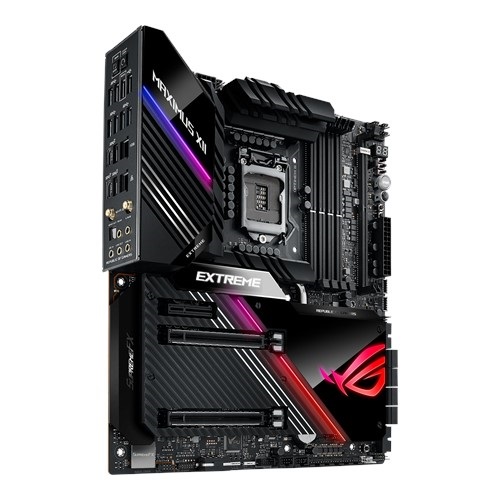

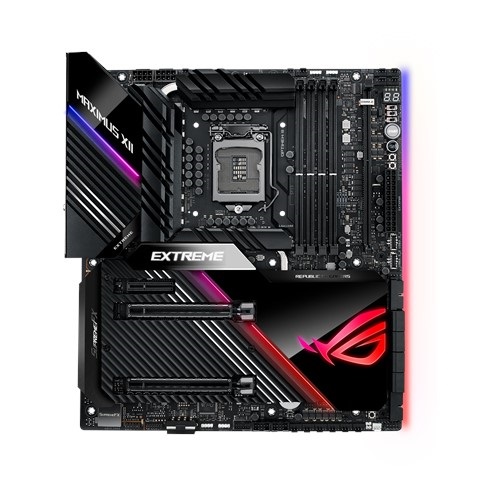

Asus ROG Maximus XII Extreme Z490 Wi-Fi Intel 10th Gen ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus ROG Maximus XII Extreme Z490 Wi-Fi Intel 10th Gen ATX Motherboard

Model: Asus ROG Maximus XII Extreme Z490 Wi-Fi
Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
Fan Xpert 4
Enhanced power solution
Ready for Ultrafast Connectivity

Available EMI Offer

TK 53700

~~TK 49800~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z490
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
Expansion Slots
PCI	Intel 10th Gen Processors: 2 x PCIe 3.0 x16 (x16 or dual x8) Intel Z490 Chipset: 1 x PCIe 3.0 x4 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM
Supported Memory	4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem III
Maximum Memory	128GB
Graphics
Graphics	Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology
Connector & Ports
USB (s)	Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2x2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-C) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet Marvell AQtion AQC107 10Gb Ethernet ASUS LANGuard Wireless Data Network: Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth: Bluetooth v5.1
Supported Storage	Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Intel Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - ESS™ ES9023 DAC + RC4580 OP AMP - Supports up to 32-Bit/192kHz playback LED-illuminated audio jacks Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors - Audio Cover
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x W_PUMP+ connector 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 8 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x Start button 1 x FlexKey button
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 Years
