Asus ROG Strix Z590-A Gaming Wi-Fi Intel 10th and 11th Gen ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

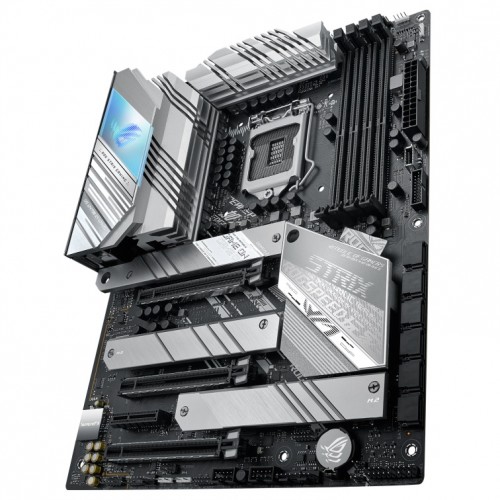

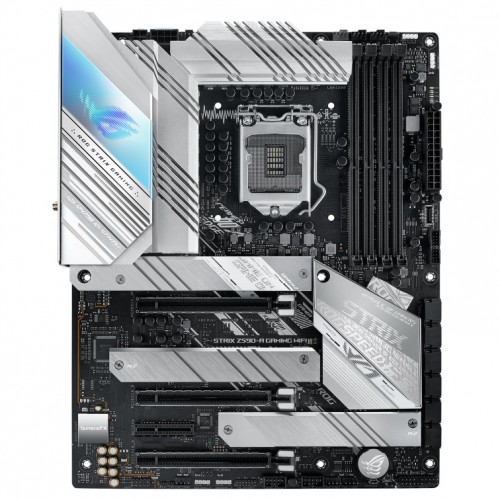

Asus ROG Strix Z590-A Gaming Wi-Fi Intel 10th and 11th Gen ATX Motherboard

Model: Asus ROG Strix Z590-A Gaming Wi-Fi
Supports 10th & 11th Gen Intel Processors
Optimal Power Solution
Best Gaming Connectivity
Optimized Thermal Design

TK 31800

~~TK 34101~~

Brand:

Asus

Product Details

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z590 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX: 30.5cm x 24.4cm
Expansion Slots
PCI	Intel 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 or x8/ x4/ x4 mode(s) - Intel 10th processors support PCIe 3.0 x16 or x8/ x4/ x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x4 slot
M.2 Socket	Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type	4DDR4
Slots	4x DIMMs
Supported Memory	5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4267(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel Core i7/i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively.
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort 1.4 1 x HDMI 2.0

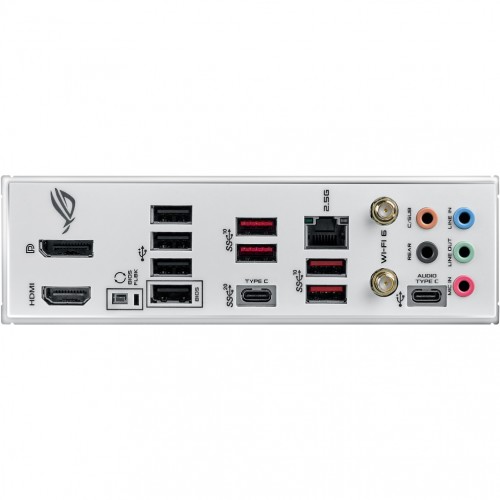

Connector & Ports
HDMI	1 x HDMI 2.0
Display Port (s)	1 x DisplayPort 1.4
USB (s)	Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 4 x USB 3.2 Gen 2 port (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet
Supported Storage	Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Audio	"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - audio jacks - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x S/PDIF out header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	3 Years
