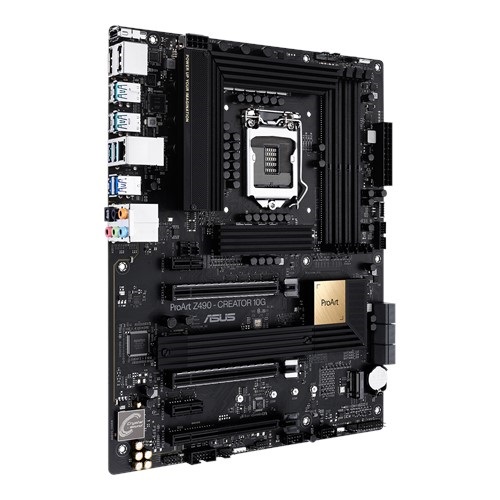

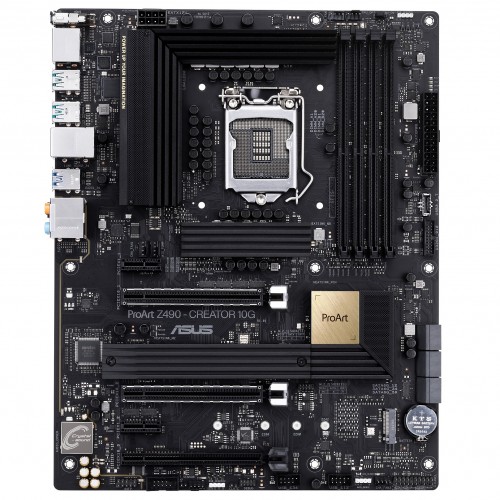

Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard

Model: Asus PROART Z490-CREATOR
LGA 1200 socket for 10th-gen Intel Core desktop processors
ProArt Creator Hub
Powerful performance
Intelligent optimization

Available EMI Offer

TK 29900

~~TK 32440~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z490
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor: 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Expansion Slots
PCI	Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1
M.2 Socket	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DDR4 DIMM
Supported Memory	4800(O.C.)/ 4600(O.C)/ 500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128 GB
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 3-Way CrossFireX Technology

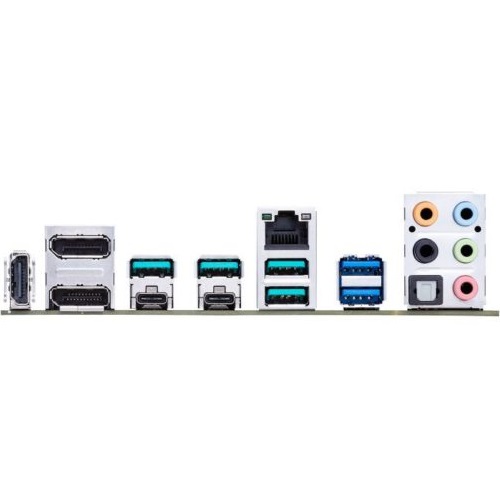

Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4
USB (s)	Intel Thunderbolt 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 2 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	Realtek ALC S1220A 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x COM port header
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 Years
