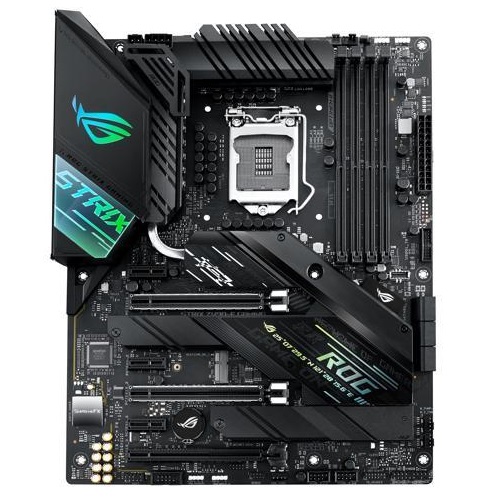

Asus ROG Strix Z490-F Gaming Intel 10th Gen ATX Motherboard


  • Model: Asus ROG Strix Z490-F Gaming
  • Optimal Power Solution, Optimized Thermal Design
  • Intel LGA 1200 Socket
  • Unmatched Personalization
  • High-performance Networking

TK 27000

TK 28540

Brand:

Asus




Product Details

Specification

Basic Information
Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z490
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
Expansion Slots
PCI Intel 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel Z490 Chipset
1 x PCIe 3.0 x16 (max at x4 mode)
3 x PCIe 3.0 x1
M.2 Socket 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 DIMM
Supported Memory Support for 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128 GB
Graphics
Graphics Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Connector & Ports
HDMI 1 x HDMI 1.4b
Display Port (s) 1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz

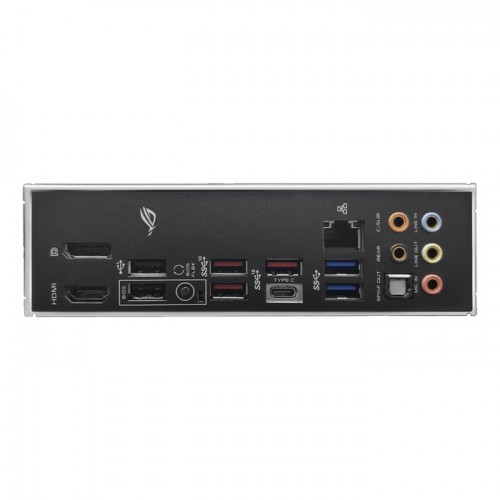

USB (s) Rear USB Port ( Total 8 )
4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)
LAN Port (s) Intel I225-V 2.5Gb Ethernet
ASUS LANGuard
Supported Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding Technology
- Gold-plated jacks
- Optical S/PDIF in port(s) at back panel
- Audio Shielding
- Premium Japanese audio capacitors
- Audio Cover
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
2 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
1 x M.2 Fan Header
1 x VRM_HS_FAN Header
Warranty Information
Manufacturing Warranty 03 Years
