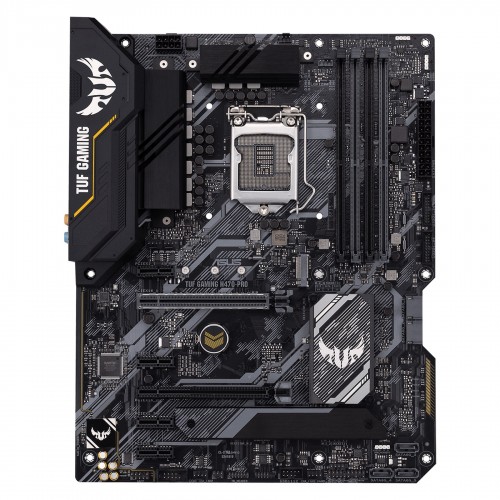

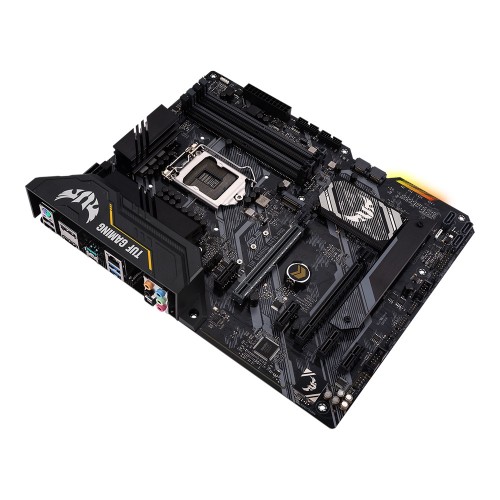

Asus TUF Gaming H470-Pro Wi-Fi 10th Gen ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus TUF Gaming H470-Pro Wi-Fi 10th Gen ATX Motherboard

Model: Asus TUF Gaming H470-Pro Wi-Fi
Build in Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Next-gen connectivity
Made for online gaming
Enhanced power solution

Available EMI Offer

TK 16800

~~TK 18000~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Build in Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Build in Intel H470
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe x1
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Non-ECC, Un-buffered Memory
Slots	4 x DIMM Slots
Supported Memory	10th Gen Intel Corei9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 MHz natively 10th Gen Intel Corei5 CPUs and below support 2933/ 2800/ 2666/ 2400/ 2133 MHz Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	128GB
Graphics
Graphics	Supports AMD 2-Way CrossFireX Technology Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b
Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4 (max. resolution of 4096 x 2304 @60Hz)

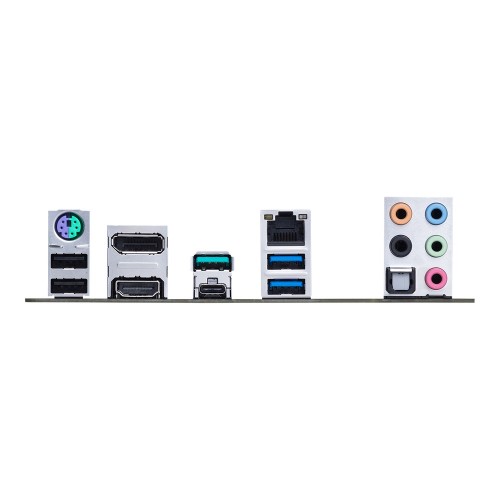

USB (s)	Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 7 ) 2 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s)(2 x Type-A) 1 x USB 2.0 port(s)(1 x Type-A)
LAN Port (s)	Intel I219-V 1Gb Ethernet TUF LANGuard
Supported Storage	Total supports 2 x M.2 slot(s) and 5 x SATA 6Gb/s ports Intel H470 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 5 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) 2 x M.2 Socket 3 5 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Warranty Information
Manufacturing Warranty	3 Years
