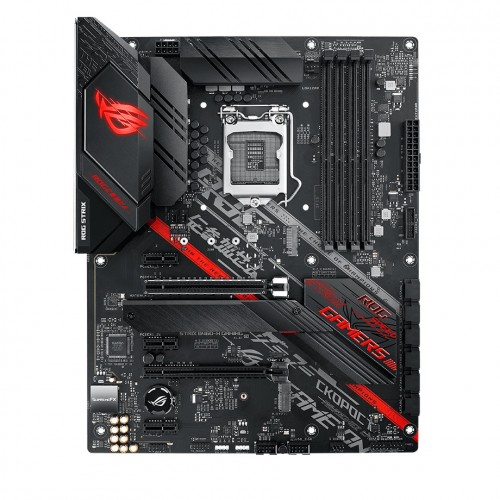

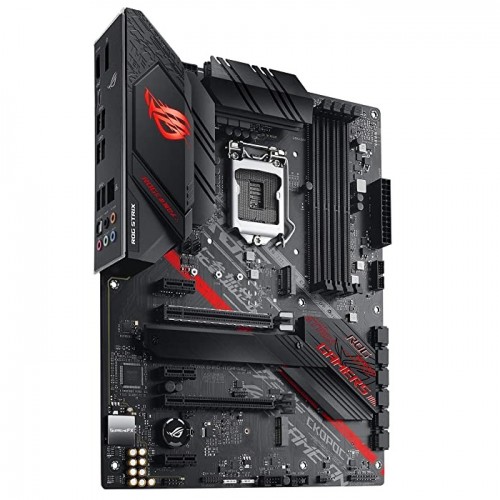

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard

Model: Asus ROG Strix B460-H
DualPCIe 3.0 M.2
Intel LGA 1200 Socket
Aura Sync RGB Lighting
Alloy Choke & Capacitor

Available EMI Offer

TK 15900

~~TK 16830~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel B460
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
Expansion Slots
PCI	Intel 10th Gen Processors: 1 x PCIe 3.0 x16 Intel B460 Chipset: 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 DIMM
Supported Memory	Support for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	128 GB
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz
USB (s)	Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I219-V 1Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Rear audio USB Type-C port - Premium Japanese audio capacitors - Audio Cover
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel connector
Warranty Information
Manufacturing Warranty	03 Years
