Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard

Model: Asus Prime B460M-A
Supports Intel 10th Gen Processors
ASUS OptiMem
5X Protection III
Ultrafast connectivity

Available EMI Offer

TK 11000

~~TK 11940~~

Brand:

Asus

Product Details

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B460
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
Expansion Slots
PCI	Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel B460 Chipset 2 x PCIe 3.0/2.0 x1
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Slots	4 x DIMM
Supported Memory	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics Processor- Intel® UHD Graphics support 1 x DisplayPort 1.4 1 x HDMI 1.4b 1 x DVI-D

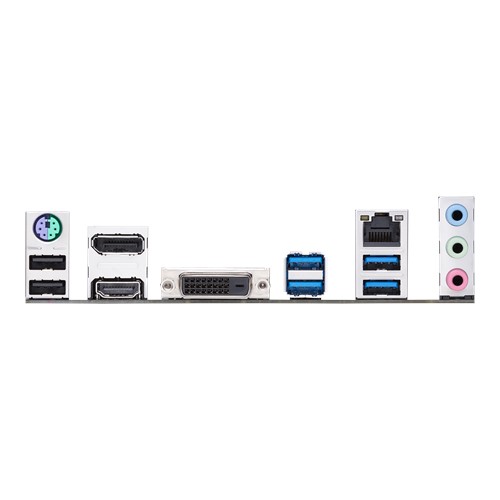

Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4
DVI-D (s)	1 x DVI-D
USB (s)	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports	1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x LPT header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
TPM (Trusted Platform Module )	1 x SPI TPM header
Warranty Information
Manufacturing Warranty	3 Years
