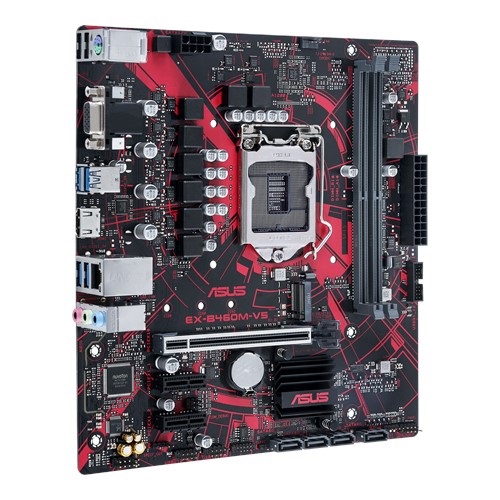

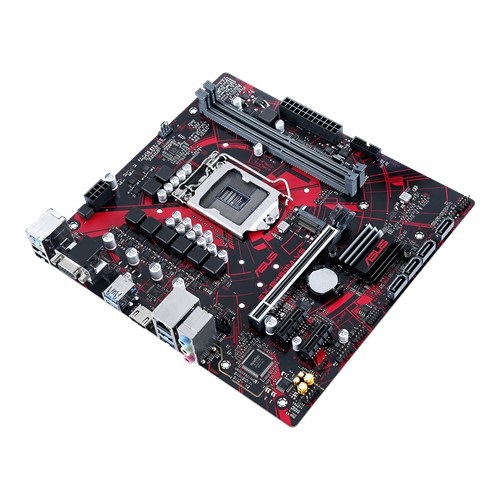

ASUS Expedition EX-B460M-V5 Intel 10th Gen M-ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

ASUS Expedition EX-B460M-V5 Intel 10th Gen M-ATX Motherboard

Model: ASUS Expedition EX-B460M-V5
LGA 1200 socket for 10th-gen Intel Core Desktop Processors
Comprehensive cooling
Made for online gaming
Enhanced power solution

Available EMI Offer

TK 9700

~~TK 10530~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Supports CPU up to 125 W
Chipset	Intel B460
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Expansion Slots
PCI	Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 Intel B460 Chipset 2 x PCIe 3.0 x1
Memory
Slots	2 x DDR4 DIMM
Supported Memory	2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 10th Gen Intel Corei9/ i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 natively Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	64 GB
Graphics
Graphics	Integrated Graphics Processor Multi-VGA output support: HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Connector & Ports
HDMI	1 x HDMI 1.4b (max. resolution 4096 x 2160 @ 30 Hz)
D-Sub (s)	1x D-sub (max. resolution 1920 x 1200 @ 60 Hz)

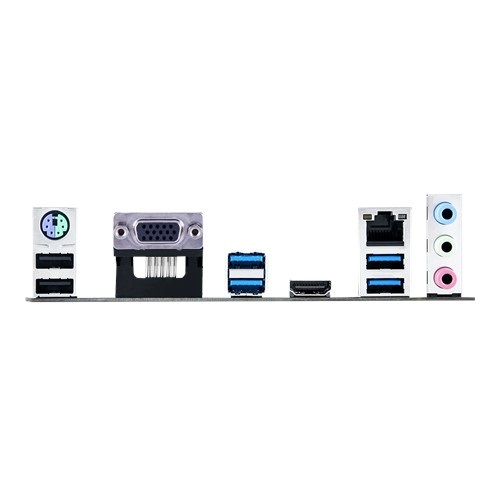

USB (s)	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)	Realtek RTL8111H ASUS LANGuard
Supported Storage	4 x SATA 6Gb/s connector(s)
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC
Internal I/O Ports	1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 Years
