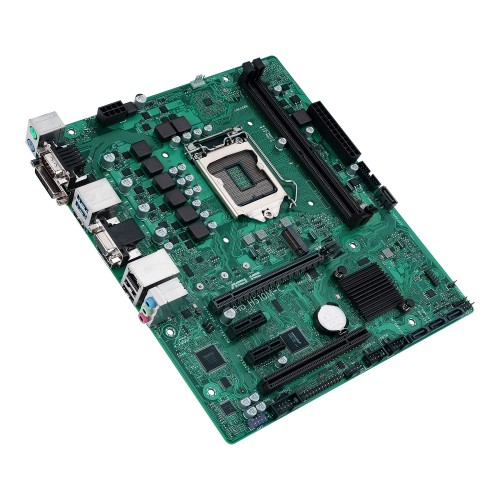

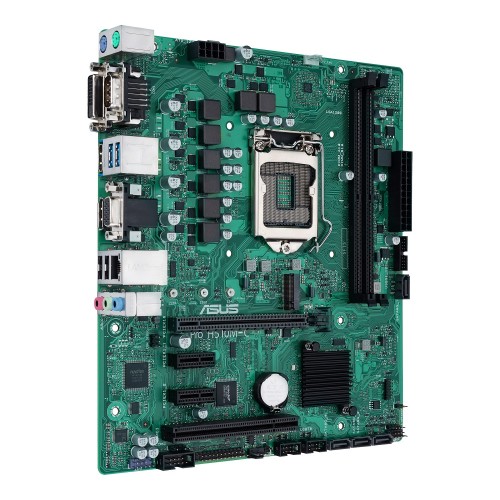

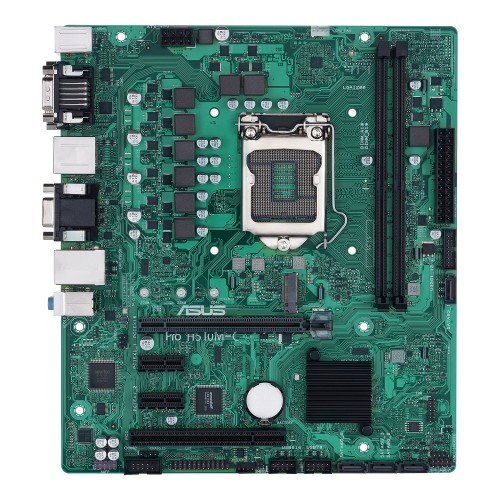

ASUS Pro H510M-C/CSM 10th & 11th Gen Micro-ATX Motherboard

Computer Components > Motherboard > ASUS (INTEL)

ASUS Pro H510M-C/CSM 10th & 11th Gen Micro-ATX Motherboard

Model: PRO H510M-C/CSM
Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
ASUS-exclusive self-recovering BIOS technology
Innovative moisture-resistant coating
PCIe 4.0 and Intel 1 Gb Ethernet

Available EMI Offer

TK 8700

~~TK 9500~~

Brand:

Asus

Quantity

ADD TO CART

ORDER NOW

Product Details

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	H510
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 24.4cm x 21.6cm
Audio	ALC887/897 Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th processors support PCIe 4.0 x16 mode - Intel 10th processors support PCIe 3.0 x16 mode Intel H510 Chipset 2 x PCIe 3.0 x1 slots* 1 x PCI slot
M.2 Socket	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	64 GB
Graphics
Graphics	1 x DP1.4** 1 x D-Sub 1 x DVI-D * Graphics specifications may vary between CPU types. Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. * Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. **** Supports up to 2 displays simultaneously.

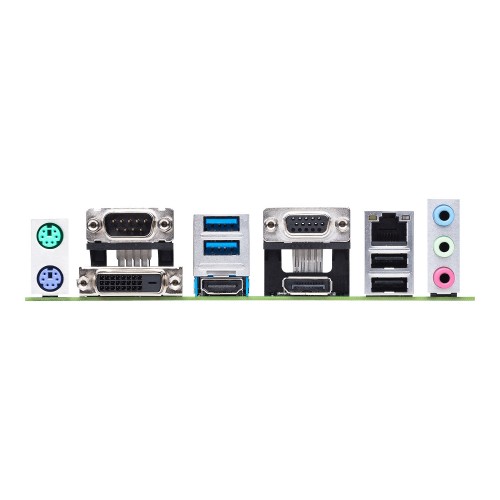

Connector & Ports
HDMI	1 x HDMI
Display Port (s)	2 x DisplayPort 1.4
D-Sub (s)	1 x D-Sub
DVI-D (s)	1 x DVI-D
USB (s)	Rear USB:Total 4 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	ASUS LANGuard
Supported Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 4 x SATA 6Gb/s ports * When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	03 Years Warranty
